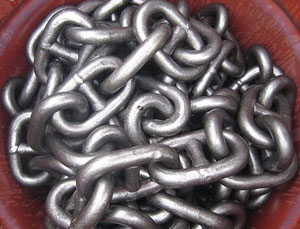

17.5mm U2/U3 Anchor Chain
We supply all kinds of marine anchor chains and offshore mooring chains with CCS, LR, ABS, BV, GL, KR, NK, DNV, RINA, and IRS marine certificate.
Marine anchor chain has 2 garde: Grade 2 and Grade 3; Offshore mooring chain has 3 grades: RQ3/NVR3, RQ3S/NVR3S, RQ4/NVR4. We can provide 12.5mm to 162mm marine anchor chains and offshore mooring chains. All marine anchor chain can be test by UT & MT detection and proof and loading test etc..
Product Detail
1. Chain Diameter: 17.5m (12.5mm to 162mm)
2. Grade: U2/U3
3. Material: Steel
4. Surface treatment: hot galvanized, black painted.
5. Certificate: CCS, ABS, LR, BV, NK, GL,DNV,RS, IRS etc.
6. Guarantee period is one year.
Common Link(C)
Testing Load of Stud Link Anchor Chain
Diamter |
CHAIN LINK SIZE |
AM2 |
AM3 |
APPROX. |
|||
U2 STUD LINK CHAIN |
U3 STUD LINK CHAIN |
WEIGHT |
|||||
OUTSIDE |
OUTSIDE |
PROOF |
BREAKING |
PROOF |
BREAKING |
27.5M |
|
LENGTH |
WIDTH |
LOAD |
LOAD |
LOAD |
LOAD |
||
MM |
MM |
MM |
KN |
KN |
KN |
KN |
KG |
12.5 |
75 |
45 |
66 |
92 |
92 |
132 |
98 |
14 |
84 |
50.4 |
82 |
116 |
116 |
165 |
119 |
16 |
96 |
57.6 |
107 |
150 |
150 |
216 |
156 |
17.5 |
105 |
63 |
127 |
179 |
179 |
256 |
186 |
19 |
114 |
68.4 |
150 |
211 |
211 |
301 |
230 |
20.5 |
123 |
73.8 |
175 |
244 |
244 |
349 |
260 |
22 |
132 |
79.2 |
200 |
280 |
280 |
401 |
300 |
24 |
144 |
86.4 |
237 |
332 |
332 |
476 |
370 |
26 |
156 |
93.6 |
278 |
389 |
389 |
556 |
431 |
28 |
168 |
100.8 |
321 |
449 |
449 |
642 |
496 |
30 |
180 |
108 |
368 |
514 |
514 |
735 |
564 |
32 |
192 |
115.2 |
417 |
583 |
583 |
833 |
635 |
34 |
204 |
122.4 |
468 |
655 |
655 |
937 |
712 |
36 |
216 |
129.6 |
523 |
732 |
732 |
1050 |
800 |
38 |
228 |
136.8 |
581 |
812 |
812 |
1160 |
887 |
40 |
240 |
144 |
640 |
896 |
896 |
1280 |
1032 |
42 |
252 |
151.2 |
703 |
981 |
981 |
1400 |
1084 |
44 |
264 |
158.4 |
769 |
1080 |
1080 |
1540 |
1197 |
46 |
276 |
165.6 |
837 |
1170 |
1170 |
1680 |
1310 |
48 |
288 |
172.8 |
908 |
1270 |
1270 |
1810 |
1438 |
50 |
300 |
180 |
981 |
1370 |
1370 |
1960 |
1546 |
52 |
312 |
187.2 |
1060 |
1480 |
1480 |
2110 |
1661 |
54 |
324 |
194.4 |
1140 |
1590 |
1590 |
2270 |
1791 |
56 |
336 |
201.6 |
1220 |
1710 |
1710 |
2430 |
1926 |
58 |
348 |
208.8 |
1290 |
1810 |
1810 |
2600 |
2086 |
60 |
360 |
216 |
1380 |
1940 |
1940 |
2770 |
2249 |
62 |
372 |
223.2 |
1470 |
2060 |
2060 |
2940 |
2361 |
64 |
384 |
230.4 |
1560 |
2190 |
2190 |
3130 |
2516 |
66 |
396 |
237.6 |
1660 |
2310 |
2310 |
3300 |
2676 |
68 |
408 |
244.8 |
1750 |
2450 |
2450 |
3500 |
2885 |
70 |
420 |
252 |
1840 |
2580 |
2580 |
3690 |
3010 |

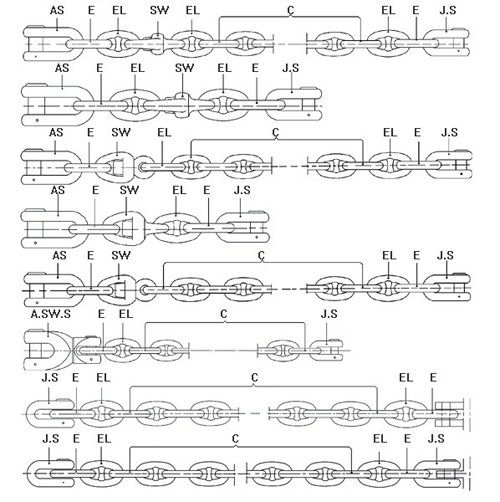

A. Joining Form for K.S.
B. Joining Form for 'D' J.S
Anchor Chains
Please send us the detailed specification and we will give you a reply as soon as we could.
