Studless Link Anchor Chain
Studless link anchor chains, also called open link anchor chain, are often used for offshore moorings. Compared with stud link anchor chains, the studless link anchor chains have the features of less weight, being suitable for larger shackles without end links and the avoidance of stud loosing problems.
Product Detail
1. Chain Diameter: 12.5mm to 70mm
2. Grade&Material: U2-CM490; U3-CM690
3. Surface: Self-colored, hot dip galvanized, painted black or as required
4. Certificate: CCS, ABS, LR, BV, NK, GL,DNV,RS, IRS etc.
5. Application: for permanent moorings

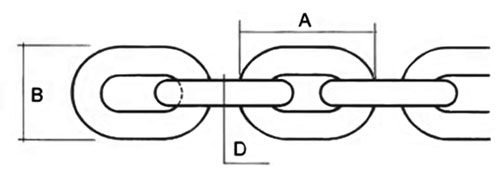

Studless Link Anchor Chain
Specification
Diamter |
CHAIN LINK SIZE |
BM2 |
|
BM3 |
|
APPROX. |
|
U2 OPEN LINK CHAIN |
U3 OPEN LINK CHAIN |
WEIGHT |
|||||
27.5M |
|||||||
OUTSIDE |
OUTSIDE |
PROOF |
BREAKING |
PROOF |
BREAKING |
KG |
|
LENGTH |
WIDTH |
LOAD |
LOAD |
LOAD |
LOAD |
||
MM |
MM |
MM |
KN |
KN |
KN |
KN |
|
12.5 |
75 |
45 |
41.2 |
82.6 |
56.4 |
112.8 |
85.41 |
14 |
84 |
50.4 |
51 |
101.9 |
70.76 |
141.51 |
106.55 |
16 |
96 |
57.6 |
66.2 |
132.3 |
92.42 |
184.83 |
139.43 |
17.5 |
105 |
63 |
78.89 |
157.78 |
110.55 |
221.1 |
178.35 |
19 |
114 |
68.4 |
93.6 |
187.2 |
130.32 |
260.64 |
217.68 |
20.5 |
123 |
73.8 |
108.64 |
217.27 |
151.7 |
303.42 |
229.14 |
22 |
132 |
79.2 |
125.4 |
250.9 |
174.4 |
349.4 |
264.49 |
24 |
144 |
86.4 |
149.9 |
298.9 |
207.9 |
415.8 |
341.82 |
26 |
156 |
93.6 |
175.4 |
350.8 |
244 |
488 |
369.94 |
28 |
168 |
100.8 |
203.8 |
406.7 |
283 |
566 |
427.04 |
30 |
180 |
108 |
234.2 |
467.5 |
324.9 |
649.8 |
490.98 |
32 |
192 |
115.2 |
265.6 |
531.2 |
369.6 |
739.3 |
559.65 |
34 |
204 |
122.4 |
299.9 |
599.8 |
417.3 |
834.6 |
671.52 |
36 |
216 |
129.6 |
336.1 |
672.3 |
467.8 |
935.7 |
707.85 |
38 |
228 |
136.8 |
374.4 |
748.7 |
521.3 |
1042.5 |
788.98 |
40 |
240 |
144 |
414.5 |
829.1 |
577.6 |
1155.2 |
869.36 |
42 |
252 |
151.2 |
457.7 |
915.3 |
636.8 |
1273.6 |
959.3 |
44 |
264 |
158.4 |
502.7 |
999.6 |
698.9 |
1398 |
1111.25 |
46 |
276 |
165.6 |
548.8 |
1097.6 |
763.9 |
1527.8 |
1152.07 |
48 |
288 |
172.8 |
597.8 |
1195.6 |
831.7 |
1663.5 |
1256.26 |
50 |
300 |
180 |
648.8 |
1239.6 |
902.5 |
1805 |
1360.41 |
52 |
312 |
187.2 |
697.63 |
1395.26 |
976.14 |
1952.28 |
1485.61 |
54 |
324 |
194.4 |
752.33 |
1504.66 |
1052.68 |
2105.36 |
1648.08 |
56 |
336 |
201.6 |
809.09 |
1618.18 |
1132.1 |
2264.2 |
1715.97 |
58 |
348 |
208.8 |
867.91 |
1735.82 |
1214.4 |
2428.8 |
1844.5 |
60 |
360 |
216 |
928.8 |
1857.6 |
1299.6 |
2599.2 |
1973.29 |
62 |
372 |
223.2 |
991.75 |
1983.5 |
1387.68 |
2775.36 |
2101.56 |
64 |
384 |
230.4 |
1056.77 |
2113.54 |
1478.66 |
2957.32 |
2298.47 |
66 |
396 |
237.6 |
1123.85 |
2247.7 |
1572.52 |
3145.04 |
2398.1 |
68 |
408 |
244.8 |
1192.99 |
2385.98 |
1669.26 |
3338.52 |
2522.88 |
70 |
420 |
252 |
1264.2 |
2528.4 |
1768.9 |
3537.8 |
2697.65 |
