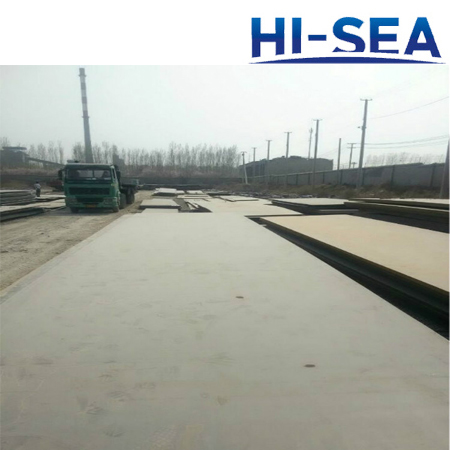

AB AH32 Shipbuilding Steel Plate


AB AH32 Shipbuilding Steel Plate

The steel grade is ABS grade AB/AH32. It is equivalent with CCSAH32, BVAH32, NV A32, GL-A32, KRAH32, LRAH32, KA32, and RINA-AH32. AB/AH32 shipbuilding steel plate is a kind of hot rolled high tensile strength marine steel plate. Its minimum tensile strength is 315MPa. The AB/AH32 shipbuilding steel plate is ideal for the offshore oil drilling platform, the hull and ship repairing. More specifically, the thin but wide plates are used for shipbuilding applications to offer the best processing properties, such as flatness and weldability. In contrast, the thick high-strength thermo-mechanical rolled shipbuilding plates are used in offshore applications. In addition to high strength shipbuilding steel plates, the normal strength and ultimate high strength steel plates are available. We are capable of providing Z-direction steel with reduction of area in the range of 25% to 35%. The size of steel plate is able to be customized according to your requirement. If you are interested in our marine steel plates, welcome to contact us.

Why choose us?

• We have rich experience in import & export trade.

• We provide you rich selection of shipbuilding steel plates, with nominal yield strengths in the range of 235 to 690MPa.

• We have high quality steel plates which are certified by the classification societies.

• We provide fast delivery, efficient logistics distribution system.

• We make prices reasonably.

Specifications of AB/DH32 Shipbuilding Steel Plate

Project

Data

Steel Grade

AB/DH32

Chemical Composition

C %

¨Q0.18

Si %

¨Q0.50

Mn %

0.90~1.60

P %

¨Q0.030

S %

¨Q0.030

Cu %

¨Q0.35

Cr %

¨Q0.20

Ni %

¨Q0.40

Nb %

0.02~0.05

V %

0.05~0.10

Ti %

¨Q0.02

Mo %

¨Q0.08

N %

----

Mechanical Property

Upper Yield strength (ReH/MPa)

¨R315

Tensile Strength (Rm/MPa)

450~570

Elongation after Fracture

(A/%)

¨R22

Charpy V-Notch Impact Test

Thickness: ¨Q50mm

Longitudinal (KV2/J)

31

Transverse (KV2/J)

22

Thickness: >50~70

Longitudinal (KV2/J)

38

Transverse (KV2/J)

26

Thickness: >70~150

Longitudinal (KV2/J)

46

Transverse (KV2/J)

31

Test Temperature (¡æ)

0

Plate Size

Thickness (mm)

5~150

Width (mm)

1500~2200

Length (mm)

3000~12000

Note

We can customize plate sizes for you.
