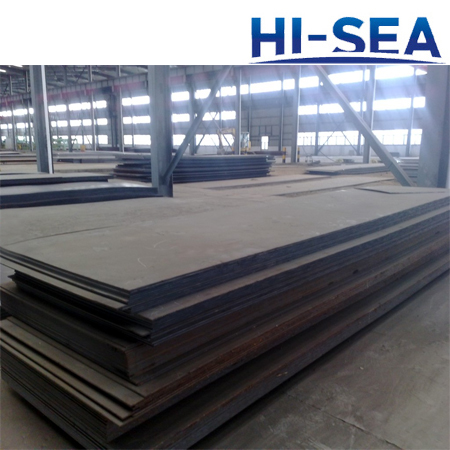

Marine Z-Direction Steel Plate

Marine Z-Direction Steel Plate

We can supply various kinds of marine Z-direction steel plates. The Z-direction steel is also called lamellar tearing resistance steel. These steel plates are accessed by through-thickness tension testing. The reduction of area is 15%, 25% and 35%. We are able to provide marine Z-direction steel plates with different yield strength, from 235MPa to 690MPa. Besides, we provide a full selection of plate sizes for you. We also can customize steel plates according to your requirement. All plates that we provide are certified by renowned classification societies, such as ABS, CCA, DNV, BV, LR, GL... If you want to know more details, welcome to contact us.

Marine Z-Direction Steel Plate

Strength	Steel Grade
General Strength	AB/A Z25, AB/AN Z25, AB/B Z25, AB/BN Z25, AB/D E35, AB/DN E35, AB/E E35, AB/EN E35 AB/A Z35, AB/AN Z35, AB/B Z35, AB/BN Z35, AB/D E35, AB/DN E35, AB/E E35, AB/EN E35
High Strength	AB/AH32 Z25, AB/AH32N Z25, AB/DH32 Z25, AB/DH32N Z25, AB/EH32 Z25, AB/EH32N Z25, AB/FH32 Z25, AB/FH32N Z25, AB/AH36 Z25, AB/AH36N Z25, AB/DH36 Z25, AB/DH36N Z25, AB/FH36 Z25, AB/FH36N Z25, AB/AH40 Z25, AB/AH40N Z25, AB/DH40 Z25, AB/DH40N Z25, AB/EH40 Z25, AB/EH40N Z25, AB/FH40 Z25, AB/FH40N Z25 AB/AH32 Z35, AB/AH32N Z35, AB/DH32 Z35, AB/DH32N Z35, AB/EH32 Z35, AB/EH32N Z35, AB/FH32 Z35, AB/FH32N Z35, AB/AH36 Z35, AB/AH36N Z35, AB/DH36 Z35, AB/DH36N Z35, AB/FH36 Z35, AB/FH36N Z35, AB/AH40 Z35, AB/AH40N Z35, AB/DH40 Z35, AB/DH40N Z35, AB/EH40 Z35, AB/EH40N Z35, AB/FH40 Z35, AB/FH40N Z35
Super High Strength	AB/AQ43 Z25, AB/AQ43N Z25, AB/DQ43 Z25, AB/DQ43N Z25, AB/EQ43 Z25, AB/EQ43N Z25, AB/FQ43 Z25, AB/FQ43N Z25, AB/AQ47 Z25, AB/AQ47N Z25, AB/DQ47 Z25, AB/DQ47N Z25, AB/EQ47 Z25, AB/EQ47N Z25, AB/FQ47 Z25, AB/FQ47N Z25, AB/AQ51 Z25, AB/DQ51 Z25, AB/EQ51 Z25, AB/FQ51 Z25, AB/AQ56 Z25, AB/DQ56 Z25, AB/EQ56 Z25, AB/FQ56 Z25, AB/AQ63 Z25, AB/DQ63 Z25, AB/EQ63 Z25, AB/FQ63 Z25, AB/AQ70 Z25, AB/DQ70 Z25, AB/EQ70 Z25, AB/FQ70 Z25 AB/AQ43 Z35, AB/AQ43N Z35, AB/DQ43 Z35, AB/DQ43N Z35, AB/EQ43 Z35, AB/EQ43N Z35, AB/FQ43 Z35, AB/FQ43N Z35, AB/AQ47 Z35, AB/AQ47N Z35, AB/DQ47 Z35, AB/DQ47N Z35, AB/EQ47 Z35, AB/EQ47N Z35, AB/FQ47 Z35, AB/FQ47N Z35, AB/AQ51 Z35, AB/DQ51 Z35, AB/EQ51 Z35, AB/FQ51 Z35, AB/AQ56 Z35, AB/DQ56 Z35, AB/EQ56 Z35, AB/FQ56 Z35, AB/AQ63 Z35, AB/DQ63 Z35, AB/EQ63 Z35, AB/FQ63 Z35, AB/AQ70 Z35, AB/DQ70 Z35, AB/EQ70 Z35, AB/FQ70 Z35

Plate Sizes:

Thickness Range: 6~350mm

Width Range: 900~4100mm

Length Range: 980~25000mm
