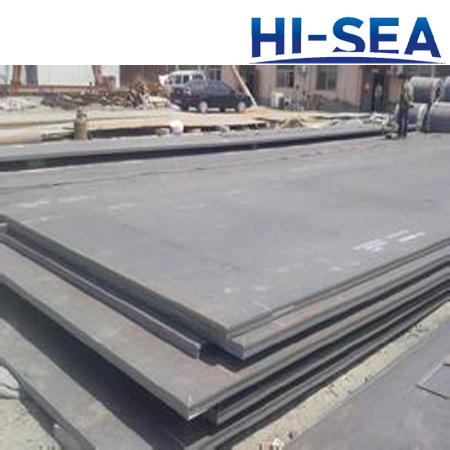

ABS Grade E Shipbuilding Steel Plate
The steel grade of the ship building plate is ABS grade E. It is equivalent with BVE, CCSE, NV E, GL-E, KRE, LRE, KE, RINA-E. It is noted that the grade of normalized plate is AB/EN, however, the grade of hot rolled steel and controlled rolled steel is AB/E. The ABS grade E shipbuilding steel plate is suitable for offshore platforms and hull fabrication. Its tensile strength is 235MPa. It belongs to normal strength shipbuilding steel plate. In addition to normal strength shipbuilding steel plate, we supply high strength shipbuilding steel plate and super high strength shipbuilding steel plate. We provide a large range of plate sizes for you. Of course, if you have any special requirement, we can customize products for you. All shipbuilding steel plates provided are certified by renowned classification societies. If you want to know more details, please contact us. We will reply you as soon as possible.
Our Advantages:
• High quality products, certified by authoritative classification societies
• A full selection of steel grades and steel sizes
• Rich experience in import and export trade
• Fast delivery, effective logistic distribution system
• Professional pre-sales and after-sales service
Specifications of ABS Grade E Shipbuilding Steel Plate
Project |
Data |
||
Steel Grade |
AB/F, AB/FN |
||
Chemical Composition |
C % |
¨Q0.18 |
|
Si % |
¨Q0.35 |
||
Mn % |
¨R0.70 |
||
P % |
¨Q0.025 |
||
S % |
¨Q0.025 |
||
Cu % |
¨Q0.35 |
||
Cr % |
¨Q0.30 |
||
Ni % |
¨Q0.30 |
||
Mechanical Property |
Upper Yield strength (ReH/MPa) |
¨R235 |
|
Tensile Strength (Rm/MPa) |
400~520 |
||
Elongation after Fracture (A/%) |
¨R22 |
||
Charpy V-Notch Impact Test |
Thickness: ¨Q50mm |
Longitudinal (KV2/J) |
27 |
Transverse (KV2/J) |
20 |
||
Thickness: >50~70 |
Longitudinal (KV2/J) |
34 |
|
Transverse (KV2/J) |
24 |
||
Thickness: >70~150 |
Longitudinal (KV2/J) |
41 |
|
Transverse (KV2/J) |
27 |
||
Test Temperature (¡æ) |
-40 |
||
Plate Size |
Thickness (mm) |
1.2~130 |
|
Width (mm) |
900~4800 |
||
Length (mm) |
980~25000 |
||
Note |
We can customize plate sizes for you. |
