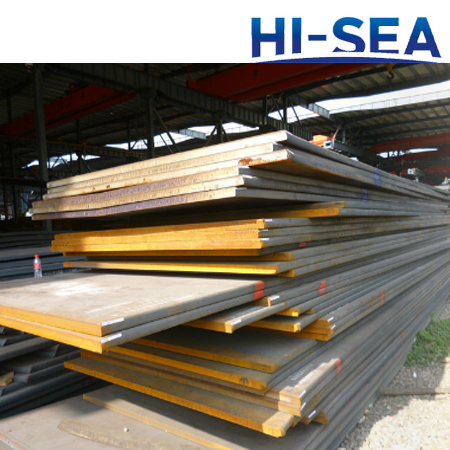

General Strength Shipbuilding Steel Plate
General high strength shipbuilding steel plate is a kind of marine steel plate which is used for shipbuilding. This plate features general strength. Its tensile strength is from 400MPa to 520MPa, and its nominal upper yield strength is over 235MPa. Its actual strength is over nominal strength in general. We provide you a full selection of steel grades, such as CCSA, CCSB, CCSD, CCSE... We can customize the plate size for you, if you have any special requirement. Our general strength shipbuilding steel plates are certified by renowned classification societies, such as ABS, CCS, DNV, GL, LR, RINA,BV, KR, NK. If you want to know more details, welcome to contact us.
Available General Strength Shipbuilding Steel Plate
Adopted Standard |
Steel Grade |
ABS Grade |
AB/A, AB/AN, AB/B, AB/BN, AB/D, AB/DN, AB/E, AB/EN |
BV Grade |
BVA, BVB, BVD, BVE |
CCS Grade |
CCSA, CCSB, CCSD, CCSE |
DNV Grade |
NV A, NV B, NV D, NV E |
GL Grade |
GL-A, GL-ATM, GL-B, GL-BTM, GL-D, GL-DTM, GL-E, GL-ETM |
KR Grade |
KRA, KRB, KRD, KRE |
LR Grade |
LRA, LRB, LRD, LRE |
NK Grade |
KA, KB, KD, KE |
RINA Grade |
RINA-A, RINA-B, RINA-D, RINA-E |
Plate Sizes
Thickness Range: 2.5~350mm
Width Range: 900~4850mm
Length Range: 3000~25000mm
