AB EQ43 Shipbuilding Steel Plate
[Search Related Products]

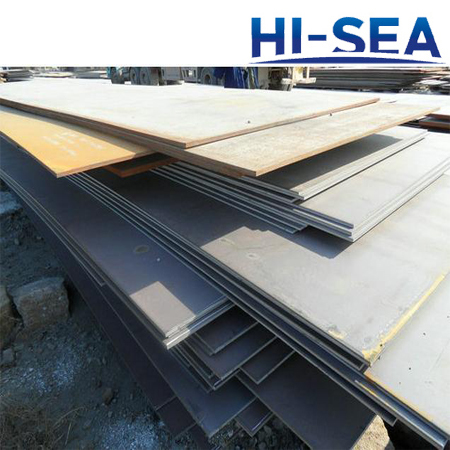

AB EQ43 Shipbuilding Steel Plate
The steel grade AB/EQ43 is ABS grade AB/EQ43. It is equivalent with CCSEH420, BVEH420, NV E420, GL-E420, KREH43, LREH42, KE43, and RINA-E420. AB/EQ43 shipbuilding steel plate is a kind of hot rolled super high tensile strength marine steel plate. Its tensile strength is 420MPa. It has excellent chemical and mechanical properties. The AB/EQ43 shipbuilding steel plate is ideal for offshore platforms and shipbuilding projects. We can provide all kinds of shipbuilding steel plate, including normal strength shipbuilding steel plates, high strength shipbuilding steel plates, and ultra high strength shipbuilding steel plates, with nominal yield strengths in the range of 235 to 690MPa. Besides, we provide a full selection of plate sizes for you. We also can customize plate sizes according to your requirement. If you are interested in our steel plates, welcome to contact us.
Why choose us?
• We have rich experience in import & export trade.
• We provide you rich selection of shipbuilding steel plates, with nominal yield strengths in the range of 235 to 690MPa.
• We have high quality steel plates which are certified by the classification societies.
• We provide fast delivery, efficient logistics distribution system.
• We make prices reasonably.
Specifications of AB/EQ43 Shipbuilding Steel Plate
Project |
Data |
|
Steel Grade |
AB/EQ43 |
|
Chemical Composition |
C % |
¨Q0.20 |
Si % |
¨Q0.55 |
|
Mn % |
¨Q1.70 |
|
P % |
¨Q0.025 |
|
S % |
¨Q0.025 |
|
N % |
¨Q0.020 |
|
Mechanical Property |
Upper Yield strength (ReH/MPa) |
¨R420 |
Tensile Strength (Rm/MPa) |
530~680 |
|
Elongation after Fracture (A/%) |
¨R18 |
|
Charpy V-Notch Impact Test |
Longitudinal (KV2/J) |
¨R42 |
Transverse (KV2/J) |
¨R28 |
|
Test Temperature (¡æ) |
-40 |
|
Heat Treatment |
TM/QT/TM+T |
|
Plate Size |
Thickness (mm) |
6~350 |
Width (mm) |
900~4850 |
|
Length (mm) |
3000~25000 |
|
Note |
It is available to customize the size of steel plate. |
Other Shipbuilding Steel Plates Provided:
ZY grade A, ZY grade B, ZY grade D, ZY grade E, A32, D32, E32, A36, D36, E36...
GB/T 712-2000 grade A, grade B, grade D, grade E, A32, D32, E32, A36, D36, E36...
