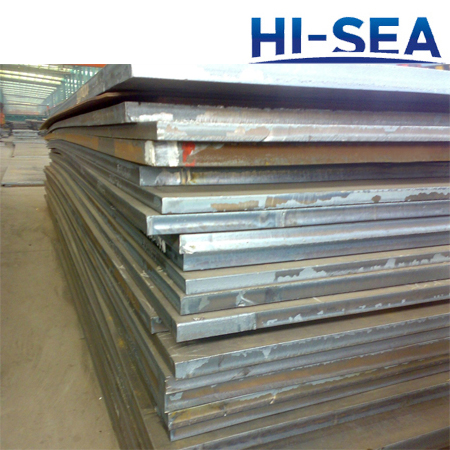

AB DH36 Shipbuilding Steel Plate
The steel grade is ABS grade AB/DH36. It is equivalent with CCSDH36, BVDH36, NV D36, GL-D36, KRDH36, LRDH36, KD36, and RINA-DH36. AB/DH36 shipbuilding steel plate is a kind of hot rolled high tensile strength marine steel plate. Its minimum tensile strength is 355MPa. The AB/DH36 shipbuilding steel plate is ideal for the offshore oil drilling platform, the hull and ship repairing. More specifically, the thin but wide plates are used for shipbuilding applications to offer the best processing properties, such as flatness and weldability. In contrast, thick high-strength thermo-mechanical rolled shipbuilding plates are used in offshore applications. In addition to high strength shipbuilding steel plates, the normal strength and ultimate high strength steel plates are available. Z-direction steel is available, too. The size of steel plate is able to be customized according to your requirement. If you are interested in our marine steel plates, welcome to inquiry!
Why choose us?
1. We have rich experience in import & export trade.
2. We provide you rich selection of shipbuilding steel plates, with nominal yield strengths in the range of 235 to 690MPa.
3. We have high quality steel plates which are certified by the classification societies.
4. We provide fast delivery, efficient logistics distribution system.
5. We make prices reasonably.
Specifications of AB/DH36 Shipbuilding Steel Plate
Project |
Data |
||
Steel Grade |
AB/DH36 |
||
Chemical Composition |
C % |
¨Q0.18 |
|
Si % |
¨Q0.50 |
||
Mn % |
0.90~1.60 |
||
P % |
¨Q0.025 |
||
S % |
¨Q0.025 |
||
Cu % |
¨Q0.35 |
||
Cr % |
¨Q0.20 |
||
Ni % |
¨Q0.40 |
||
Nb % |
0.02~0.05 |
||
V % |
0.05~0.10 |
||
Ti % |
¨Q0.02 |
||
Mo % |
¨Q0.08 |
||
N % |
---- |
||
Mechanical Property |
Upper Yield strength (ReH/MPa) |
¨R355 |
|
Tensile Strength (Rm/MPa) |
490~630 |
||
Elongation after Fracture (A/%) |
¨R21 |
||
Charpy V-Notch Impact Test |
Thickness: ¨Q50mm |
Longitudinal (KV2/J) |
34 |
Transverse (KV2/J) |
24 |
||
Thickness: >50~70 |
Longitudinal (KV2/J) |
41 |
|
Transverse (KV2/J) |
27 |
||
Thickness: >70~150 |
Longitudinal (KV2/J) |
50 |
|
Transverse (KV2/J) |
34 |
||
Test Temperature (¡æ) |
-20 |
||
Plate Size |
Thickness (mm) |
6~350 |
|
Width (mm) |
900~4850 |
||
Length (mm) |
3000~25000 |
||
Note |
We can customize plate sizes for you. |
