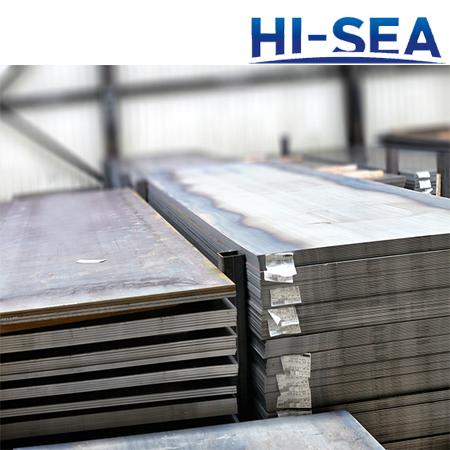

AB EH40 Shipbuilding Steel Plate

AB EH40 Shipbuilding Steel Plate

The steel grade AB/EH40 is ABS grade AB/EH40. It is equivalent with CCSEH40, BVEH40, NV E40, GL-E40, KREH40, LREH40, KE40, and RINA-EH40. AB/EH40 shipbuilding steel plate is a kind of hot rolled high tensile strength marine steel plate. Its minimum tensile strength is 390MPa. It has excellent chemical and mechanical properties. The AB/EH40 shipbuilding steel plate is ideal for offshore platforms and shipbuilding projects. We can provide all kinds of shipbuilding steel plate, including normal strength shipbuilding steel plates, high strength shipbuilding steel plates, and ultra high strength shipbuilding steel plates, with nominal yield strengths in the range of 235 to 690MPa. Besides, we provide a full selection of plate sizes for you. We also can customize plate sizes according to your requirement. If you are interested in our steel plates, welcome to contact us.

Why choose us?

1. We have rich experience in import & export trade.

2. We provide you rich selection of shipbuilding steel plates, with nominal yield strengths in the range of 235 to 690MPa.

3. We have high quality steel plates which are certified by the classification societies.

4. We provide fast delivery, efficient logistics distribution system.

5. We make prices reasonably.

Specifications of AB/EH40 Shipbuilding Steel Plate

Project

Data

Steel Grade

AB/EH40

Chemical Composition

C %

¨Q0.18

Si %

¨Q0.50

Mn %

0.90~1.60

P %

¨Q0.025

S %

¨Q0.025

Cu %

¨Q0.35

Cr %

¨Q0.20

Ni %

¨Q0.40

Nb %

0.02~0.05

V %

0.05~0.10

Ti %

¨Q0.02

Mo %

¨Q0.08

N %

----

Mechanical Property

Upper Yield strength (ReH/MPa)

¨R390

Tensile Strength (Rm/MPa)

510~660

Elongation after Fracture

(A/%)

¨R20

Charpy V-Notch Impact Test

Thickness: ¨Q50mm

Longitudinal (KV2/J)

41

Transverse (KV2/J)

27

Thickness: >50~70

Longitudinal (KV2/J)

46

Transverse (KV2/J)

31

Thickness: >70~150

Longitudinal (KV2/J)

55

Transverse (KV2/J)

37

Test Temperature (¡æ)

-40

Plate Size

Thickness (mm)

6~350

Width (mm)

900~4850

Length (mm)

3000~25000

Note

We can customize plate sizes for you.
