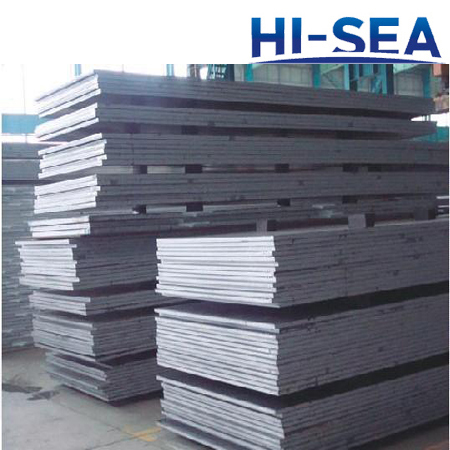

AB DQ47 Shipbuilding Steel Plate

AB DQ47 Shipbuilding Steel Plate

The shipbuilding steel grade is ABS grade DQ47. The steel grade is equivalent with CCS DH460, BV DH460, NV D460, GL-D460, KR DH47, LR DH46, KD47, and RINA-D460. It is a kind of marine steel plate. It features high tensile strength, and the minimum yield strength of the steel plate is 460MPa. The AB/DQ47 shipbuilding steel plate is ideal for offshore platforms, shipping engineering and shipbuilding projects. We are capable of supplying normal strength shipbuilding steel plates, high strength shipbuilding steel plates and ultra high strength shipbuilding steel plates. Structural steel plates for offshore platforms are available, too. We are able to customize the sizes of steel plates for you. Besides, we can provide relevant certificates, such as CCS, ABS, LR, BV, GL,KR,NK,RINA, DNV... If you are interested in our products, welcome to contact us.

Why choose us?

• We have rich experience in import & export trade.

• We provide you rich selection of marine steel plates, with nominal yield strengths in the range of 235 to 690MPa.

• We have high quality steel plates which are certified by the classification societies.

• We provide fast delivery, efficient logistics distribution system.

• We make prices reasonably.

Specifications of AB/DQ47 Shipbuilding Steel Plate

Project

Data

Steel Grade

AB/DQ47

Chemical Composition

C %

¨Q0.20

Si %

¨Q0.55

Mn %

¨Q1.70

P %

¨Q0.025

S %

¨Q0.025

N %

¨Q0.020

Mechanical Property

Upper Yield strength (ReH/MPa)

¨R460

Tensile Strength (Rm/MPa)

570~720

Elongation after Fracture

(A/%)

¨R17

Charpy V-Notch Impact Test

Longitudinal (KV2/J)

¨R46

Transverse (KV2/J)

¨R31

Test Temperature (¡æ)

-20

Heat Treatment

TM/QT/TM+T

Plate Size

Thickness (mm)

6~350

Width (mm)

900~4850

Length (mm)

3000~25000

Note

It is available to customize the size of steel plate.

Other Shipbuilding Steel Plates Provided:

LR grade A, LR grade B, LR grade D, LR grade E, LRAH32, LRDH32, LREH32, LRFH32, LRAH36, LRDH36, LREH36, LRFH36, LRAH40, LRDH40, LREH40, LRFH40, LRAH42, LRDH42, LREH42, LRFH42, LRAH46, LRDH46, LREH46, LRFH46, LRAH55, LRDH50, LREH50, LRFH50, LRAH55, LRDH55, LREH55, LRFH55, LRAH63, LRDH63, LREH63, LRFH63, LRAH70, LRDH70, LREH70, LRFH70...
