Customized Stainless Steel Sea-water Hydrophore

1. Technical Requirements:

* Design pressure: 0.6MPa

* Working pressure: 0.66MPa

* Test Pressure of Sealing: 0.99MPa

* Test Pressure of Strength: 0.825MPa

* Various appendices physical location scene decides

* Material of main parts: Stainlness

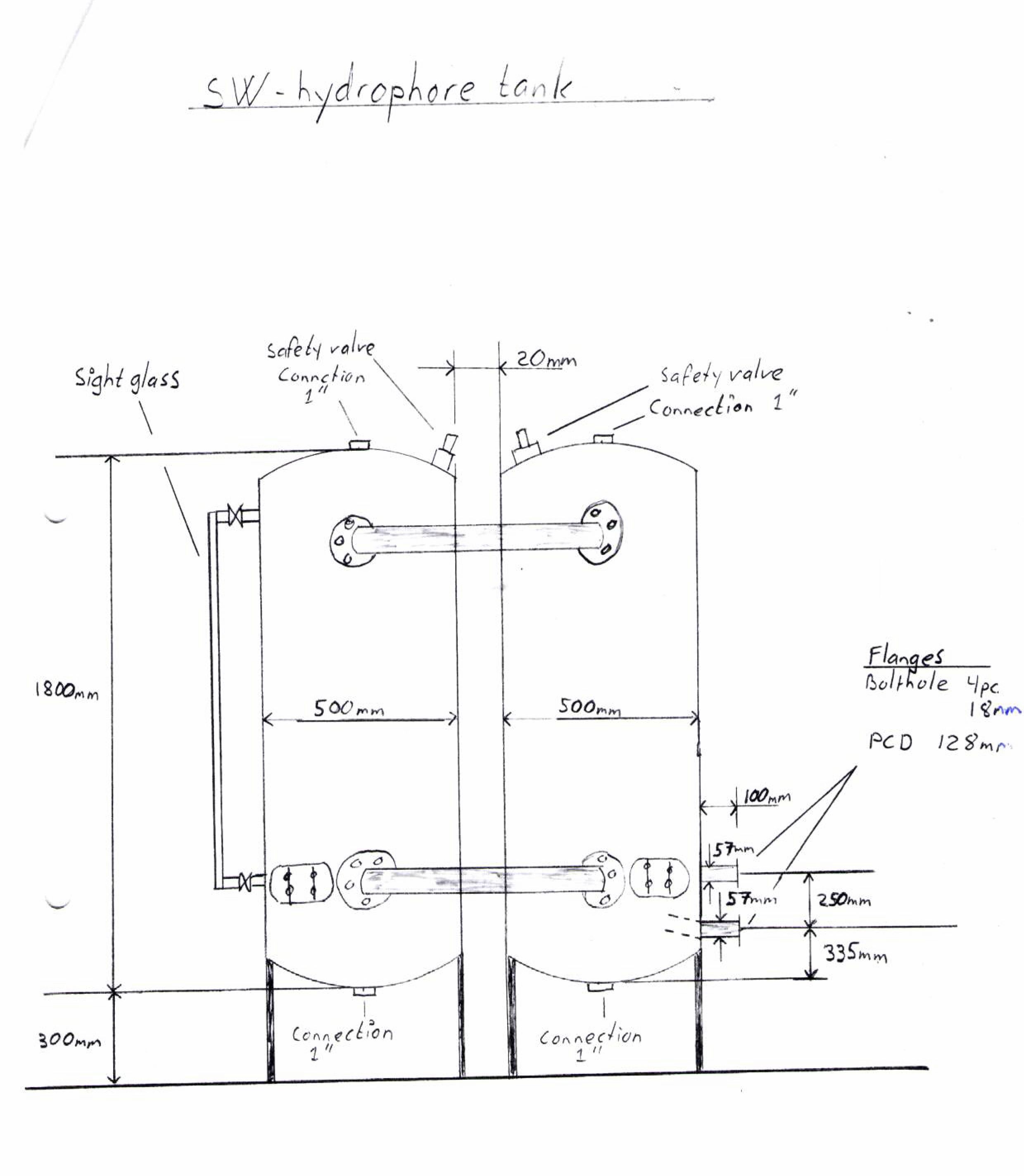

2. Customer's sketch:

Customized Stainless Steel Sea-water Hydrophore

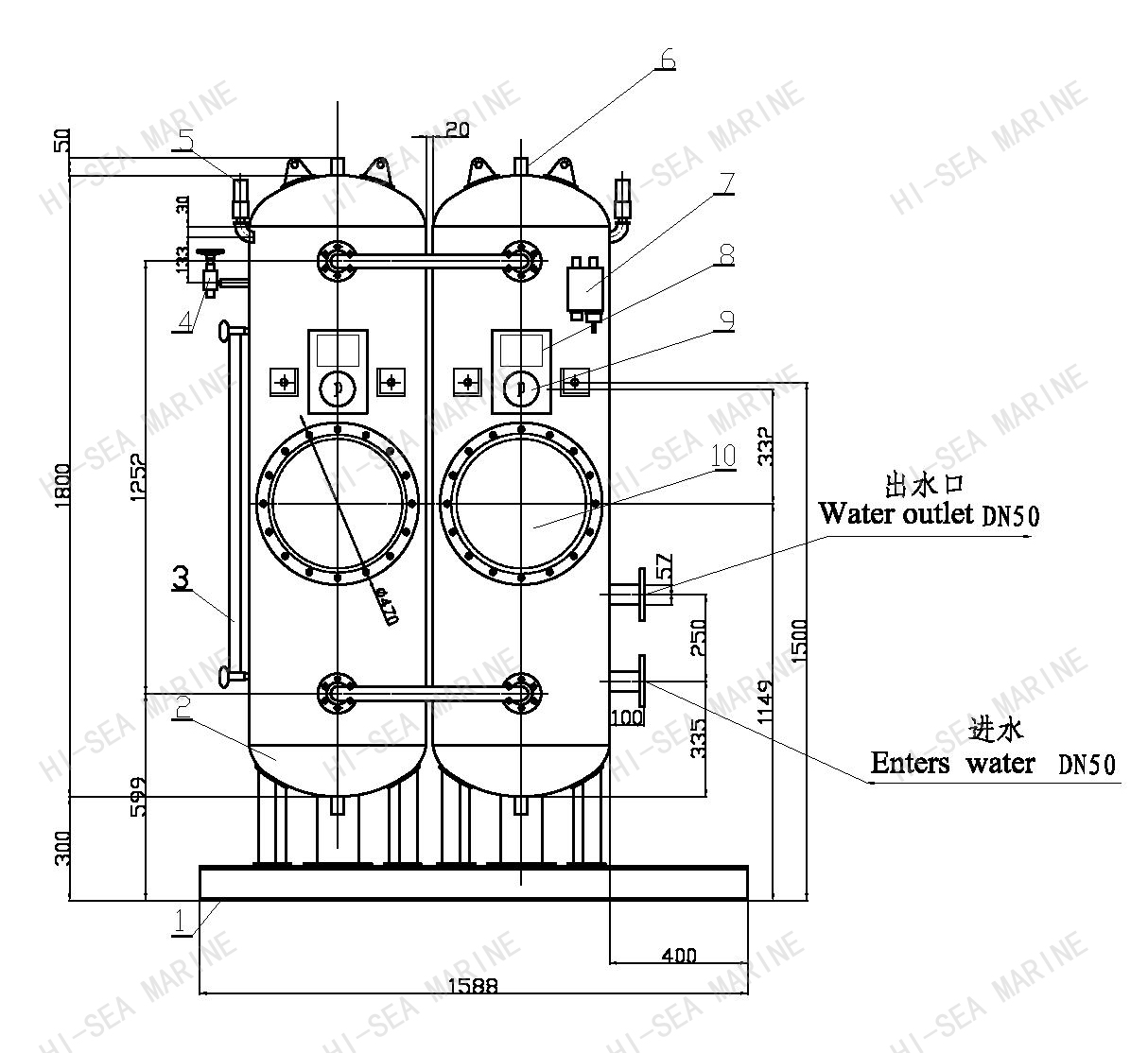

3. Confirmed general drawing:

Customized Stainless Steel Sea-water Hydrophore

No.

Model

Description

Qty. (pc)

Remarks

1

Public base

2

Assembly

2

Body

1

Assembly

3

ULG-1000H

Liquidometer

1

Copper

4

B40010 GB596

Stop inverted valve

1

Assembly

5

A27H-10

Safety valve

4

Q235A

6

1' Screw seat

2

Assembly

7

YPK-03-C-01

Pressure controller

1

Assembly

8

Data plate

1

Assembly

9

YC-100T

pressure gage

2

Assembly

10

DN375

Manhole lid

1

Assembly
