YLG-0.12 Vertical Hydrophore Tank

YLG-0.12 Vertical Hydrophore Tank

1.Main technical requirements:

Volume: 0.12m3

Working pressure: 0.6MPa

Design pressure: 0.7MPa

Strength test pressure: 1.05MPa

Air tightness test pressure: 0.875MPa

Open pressure of safety valve: 0.63MPa

Working temperature: 0~45¡æ

Design temperature: 50¡æ

2.Interface:

Model

Water inlet

Water discharging outlet

inflation inlet

Discharging outlet

Safety valve

YLG-0.12

DN25

DN25

DN10

G3/4¡å

ZG1/2¡å

3.General drawing and base drawing:

YLG-0.12 Vertical Hydrophore Tank

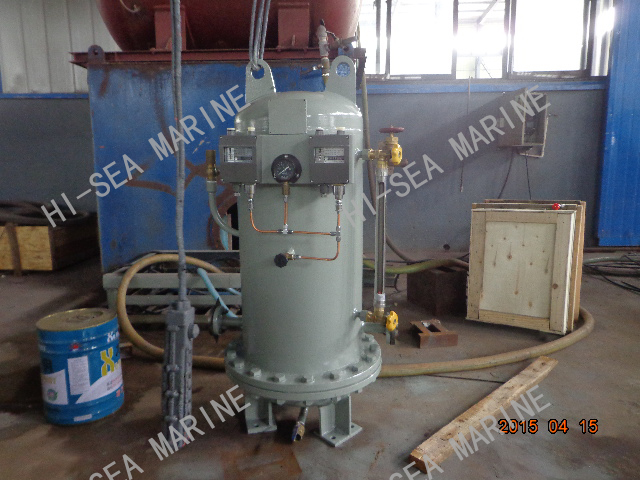

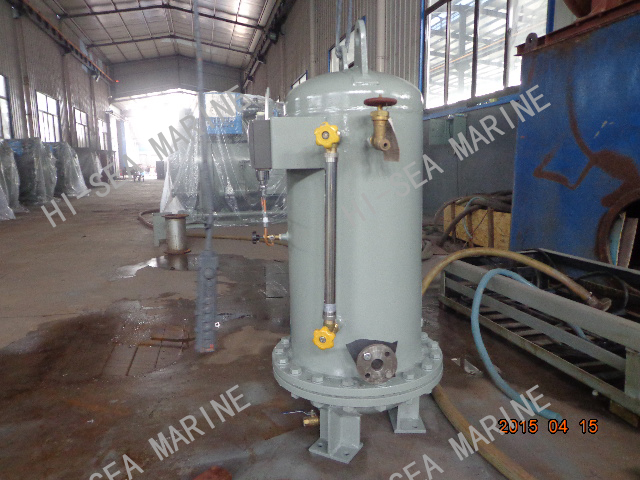

4.The workshop:

YLG-0.12 Vertical Hydrophore TankYLG-0.12 Vertical Hydrophore Tank
