ZYG-0.5 Hydrophore

[Search Related Products]

ZYG-0.5 Hydrophore

1.Technical Requirements:

1). Flange Standard£ºCB/T46-1999 PN1.0;
2). The shell cover thickness including the forming thinning;
3). The system including security settings;
4). Pipes and support same as the drawings.

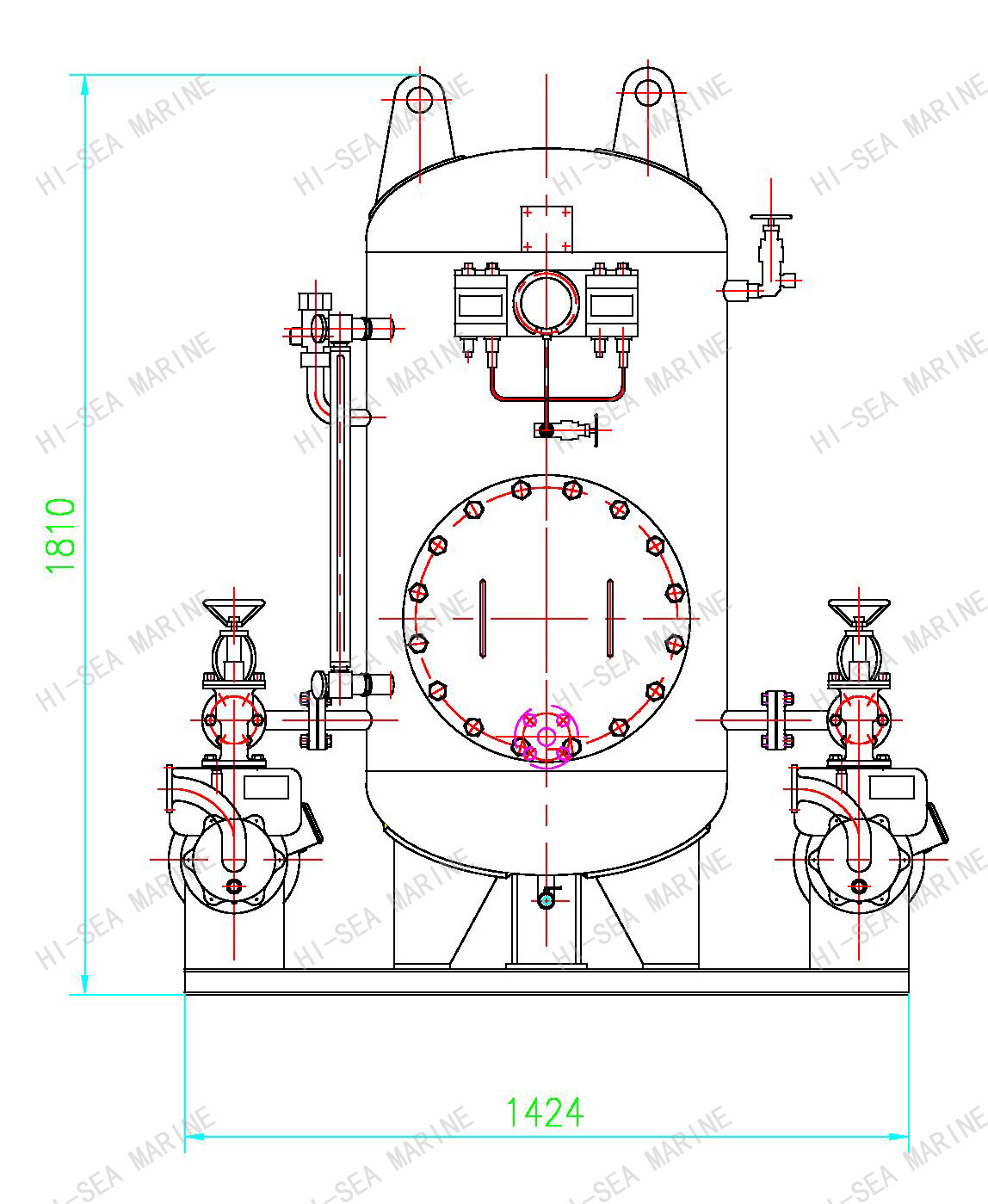

2. General Drawing:

ZYG-0.5 Hydrophore

3. Design Datas:

Working Pressure

0.4Mpa

Design Pressure

0.44Mpa

Working Temp.

0~45¡æ

Design Temp.

50¡æ

Main Materials

CCS-B/SS304/SS316

corrosion allowance

0.75mm

welded joint coefficient

0.6

Capacity

0.5m³

The relief valve pressure jump

0.42MPa

Wet Weight

920 Kgs

Dry Weight

420 Kgs

4. Pumps Mian Parameters:

Capacity 3 m³/hr
Head 40 meters
Speed 2900 RPM
Power 2.2 Kw

5. Certificate Supply:

ZYG-0.5 Hydrophore

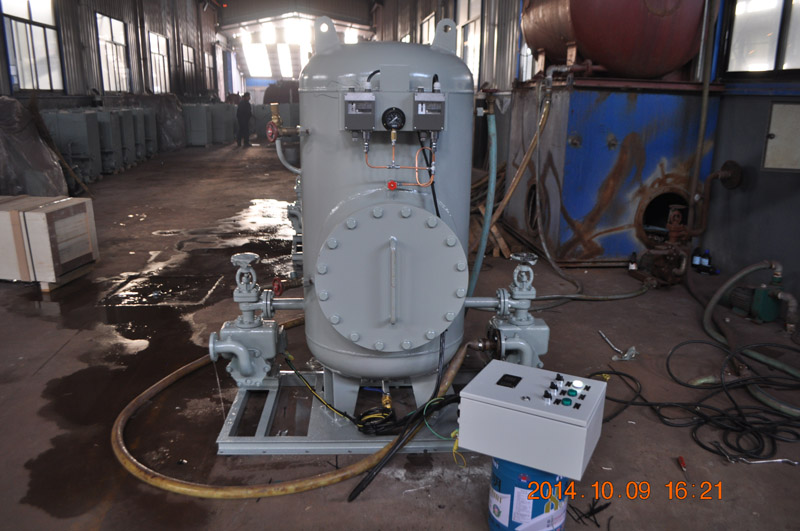

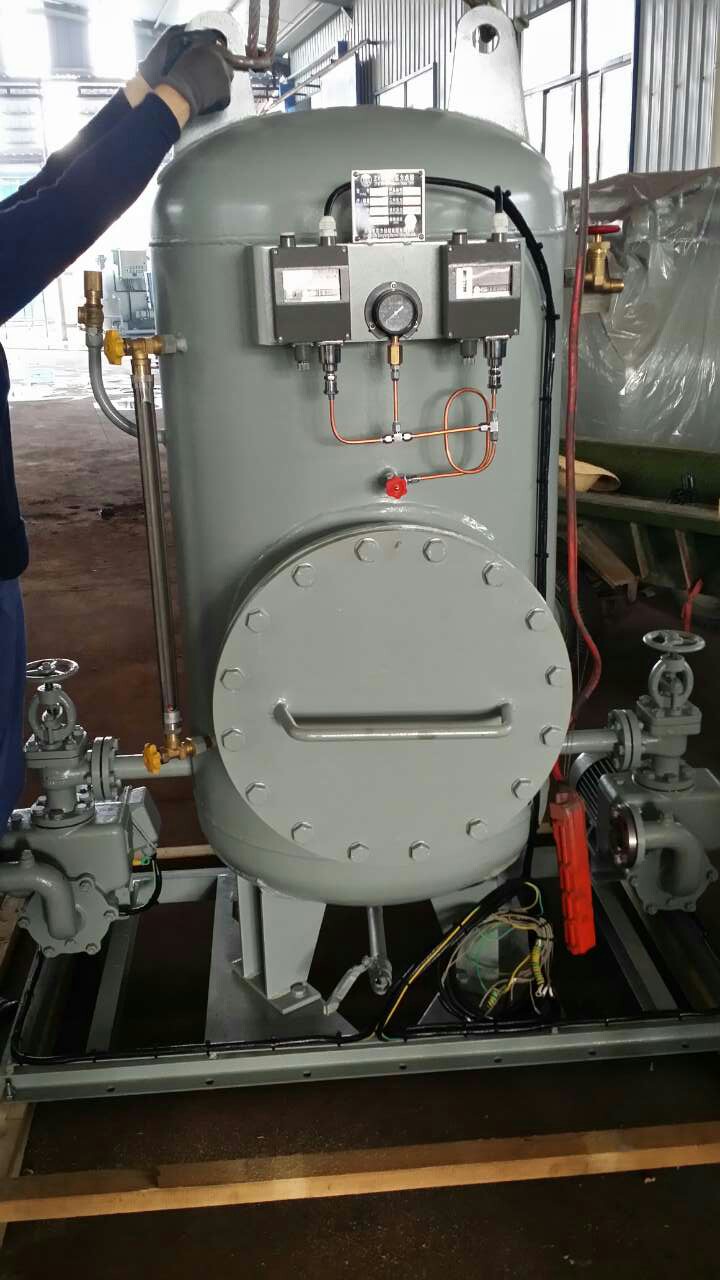

6. Workshop:

ZYG-0.5 Hydrophore

ZYG-0.5 Hydrophore
