ZYG Series Combined Pressure Water Vessel System
[Search Related Products]
1. ZYG Series Combined Pressure Water Vessel System

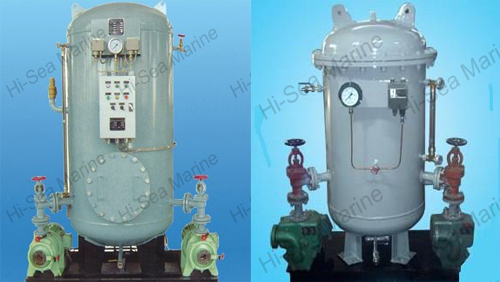

This series combined pressure water vessel system, an integration of gressure water vessel, water pump and valve pipe, is the best water supply unit that is applicable to various types of sea water and fresh water piping water supply systems.They have the characteristics of modular unit,compact structure, beautiful shape and easy installation and maintenance.
2. Main Technical Parameters
Model |
Volume(m3) |
Design Pressure(Mpa) |
Working Pressure(Mpa) |
Water Pump Model |
Motor Power(kw) |
Capacity(m3/h) |
Pressure(Mpa) |
ZYG-0.2 |
0.2 |
0.7 |
0.4 |
1.5CWX-2 |
2.2 |
3 |
0.4 |
ZYG-0.3 |
0.3 |
||||||
ZYG-0.5 |
0.5 |
||||||
ZYG-1.0 |
1 |
||||||
ZYG-1.5 |
1.5 |
||||||
ZYG-2.0 |
2 |
||||||
ZYG-2.5 |
2.5 |
Model |
Overall Size(mm) |
Base Size(mm) |
Water Inlet |
Water Outlet |
Draining Outlet |
||||
DN |
L |
B |
H |
A |
B |
DN |
|||
ZYG-0.2 |
500 |
1130 |
745 |
1635 |
1040 |
600 |
40 |
25 |
20 |
ZYG-0.3 |
600 |
1170 |
742 |
1690 |
1080 |
600 |
32 |
20 |
|
ZYG-0.5 |
700 |
1236 |
955 |
1920 |
1160 |
700 |
32 |
20 |
|
ZYG-1.0 |
900 |
1585 |
1216 |
2153 |
1510 |
960 |
40 |
20 |
|
ZYG-1.5 |
1000 |
1604 |
1310 |
2615 |
1600 |
1000 |
40 |
20 |
|
ZYG-2.0 |
1200 |
1812 |
1525 |
2473 |
1810 |
1220 |
40 |
25 |
|
ZYG-2.5 |
1200 |
1812 |
1525 |
2873 |
1810 |
1220 |
40 |
25 |
