Pressure Water Tank

1. Brief Description

High quality pressure water tank (Hydrophore tank), and Combination pressure water tank supply.

The quality have approved by IMO. The CCS, ABS, BV, EC, GL etc. certificates for you choose.

The material usually be carbon steel or stainless steel.

We are also navy supplier.

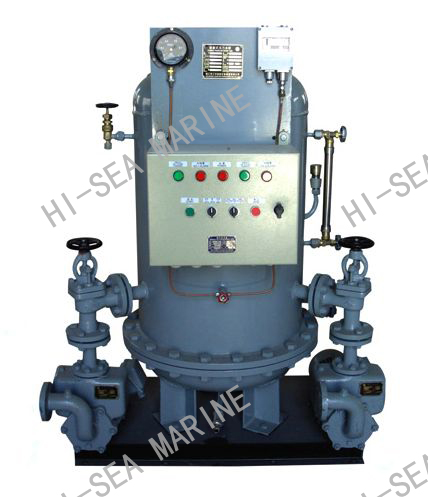

2. Pressure Water Tank

The Pressure Water Tank is appropriate for the water supply system (fresh water, seawater) on board.

Also, it is an instrument for obtaining samples of water (as in a river, lake, or ocean) from any desired depth.

Pressure Water Tank

3. Combination Pressure Water Tank

A combination pressure water tank is used in tall buildings and marine environments to pump, store and supply fresh or grey water. Such a system will consist of one or more chambers with valves, sensors and pipework.
Often under pressure and in combination with a calorifier, hydrophore chambers can provide hot or cold fresh or sea water to a ship in a controlled manner, and provide additional regulatory measures, such as temperature and pressure control.

Model		ZYG-
		0.12	0.2	0.3	0.5	1.0	1.5	2.0
Volume（m3）		0.12	0.2	0.3	0.5	1.0	1.5	2.0
Working pressure（MPa）		0.4
Design pressure （MPa）		0.44
Test pressure （MPa）		0.66
Take-off pressure of safety valve（MPa）		0.42
Working temperature（℃）		0~45
Design temperature（℃）		50
Water pump	Model	1.5CWX-1.5/1.5A				1.5CWX-2/2A		1.5CWX-3/3A
	Flow rate（m3/h）	3				6.5		10
	Pumping head (m)	40				40		40
	Power(kW)	2.2				3		4

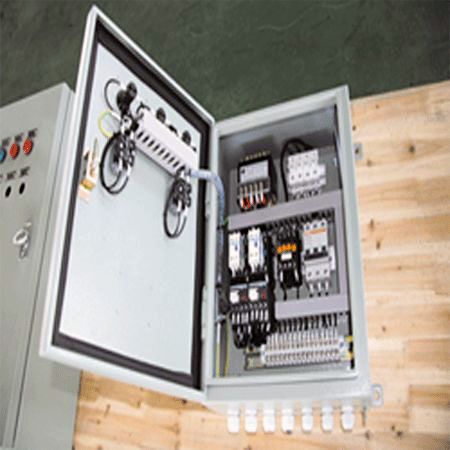

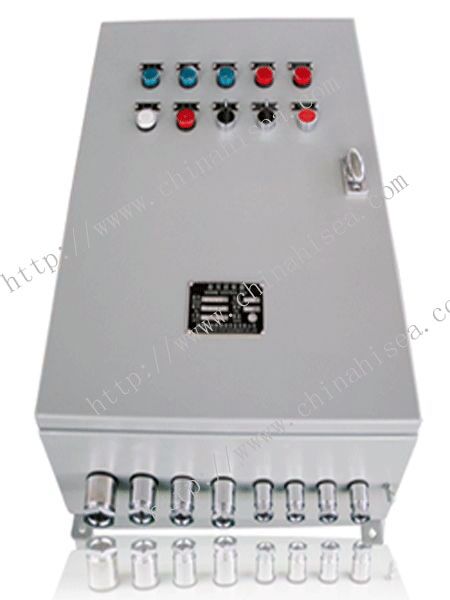

4. The Control Box of Pressure Water Tank

5. The Certificate Samples of Pressure Water Tank

Pressure Water Tank

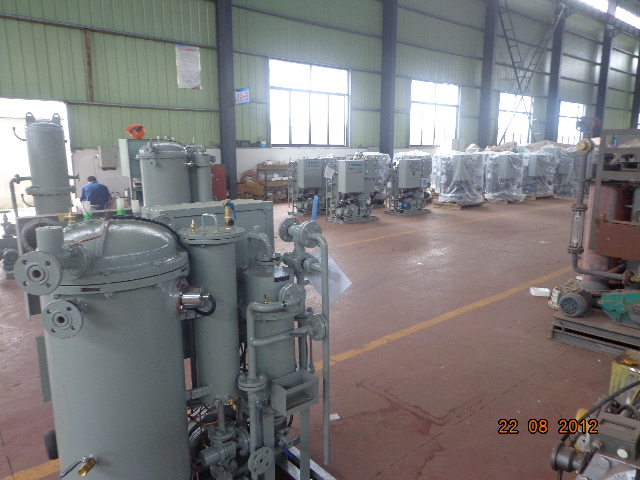

6. The Work-shop of Pressure Water Tank

Pressure Water Tank
