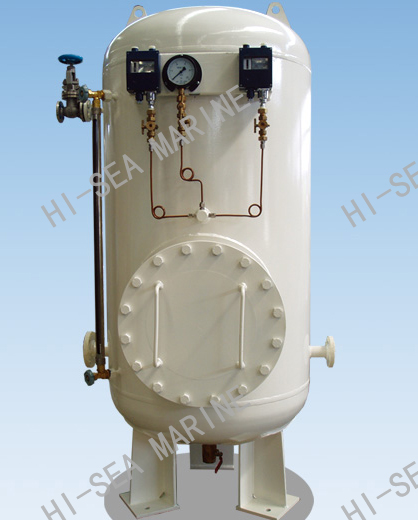

Hydrophore
[Search Related Products]
1. Application
The pressure water tank can be used to provide fresh water for living and cleaning of ship and drilling platforms.
2. Principle Description
This device depend on the pressure from the supply pump to compress air, then the water in the tank keeping appropriate pressure, to supply the crews. The pump proved by the ship-owner.
3. Structure
A£ºWall-hanging type, Repair entrance: barrel flange;
B£ºWall-hanging type, Repair entrance: barrel manhole;
C£ºVertical type, Repair entrance: barrel manhole.
Model | Capacity(m3) | Working pressure (MPa) | Design pressure(MPa) | Body Material | Vavel Material | Pump | Class | Delivery Time (day) |
YLG-0.12 | 0.12 | 0.4-0.6 | 0.44-0.66 | Carbon Steel, Stainless Steel | bronze and stainless steel |
380-440V, 50-60HZ |
CCS, EC, GL, BV, LR, ABS, USCG, etc. |
25-60 |
YLG-0.2 | 0.20 | |||||||
YLG-0.3 | 0.30 | |||||||
YLG-0.5 | 0.50 | |||||||
YLG-1.0 | 1.00 | |||||||
-2.0 | 2.00 | |||||||
We also accept customize as your requires. |
