Cone Type Rubber Fender
Cone Fenders are the latest generation of ˇ°Cell Fenderˇ± combining excellent energy capacity with low reaction force to give the most efficient performance of any fender. The conical shape keeps the body stable under all combinations of axial, shear and angular loading, making it ideal for berths where large berthing angles and heavy impacts need to be accommodated.

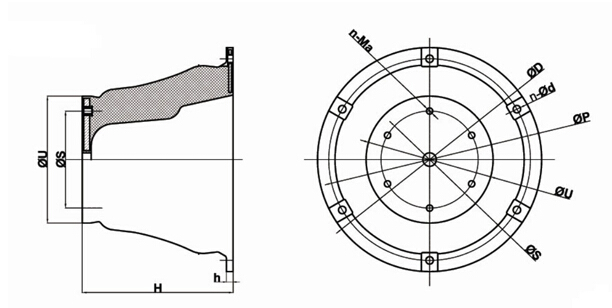

Specification:
Cone Type Rubber Fender Model | H(mm) | D(mm) | U(mm) | P(mm) | S(mm) | Hole |
CO500H | 500 | 800 | 490 | 730 | 425 | 4 |
CO600H | 600 | 960 | 590 | 875 | 515 | 4 |
CO800H | 800 | 1280 | 785 | 1165 | 685 | 6 |
CO1000H | 1000 | 1600 | 980 | 1460 | 855 | 6 |
CO1100H | 1100 | 1760 | 1080 | 1605 | 940 | 8 |
CO1200H | 1200 | 1920 | 1175 | 1750 | 1025 | 8 |
CO1300H | 1300 | 2080 | 1275 | 1900 | 1100 | 8 |
CO1400H | 1400 | 2240 | 1370 | 2040 | 1195 | 8 |
CO1600H | 1600 | 2560 | 1570 | 2335 | 1365 | 8 |
CO1800H | 1800 | 2880 | 1765 | 2625 | 1540 | 10 |

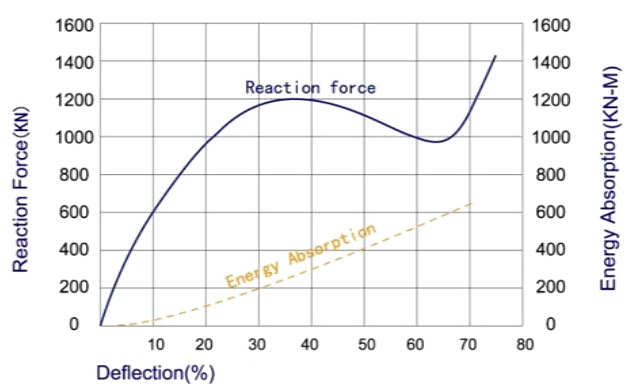

Performance Curve:

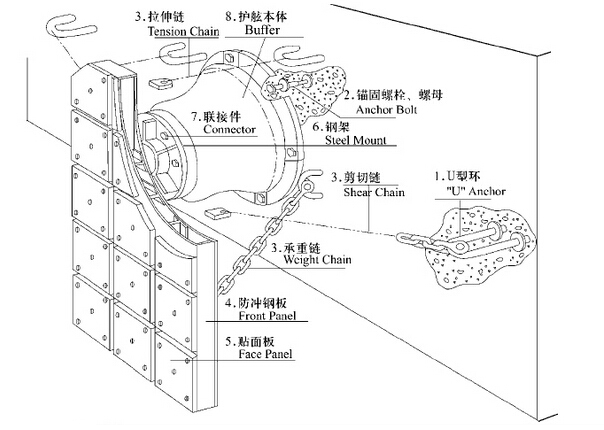

Installation:

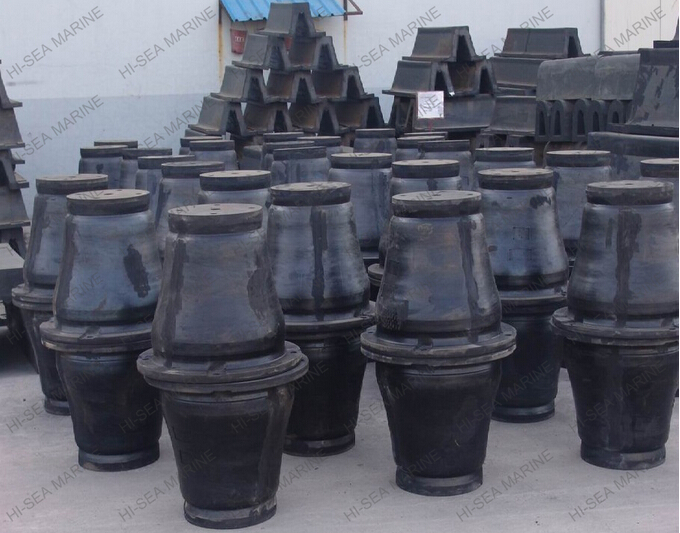

Cone Type Rubber Fender Picture
