Square Rubber Fender

Square Rubber Fender

Square Rubber Fender has heavier shoulders which make it ideal for tougher service environments. Square fenders are commonly used on the bow or stern of smaller tugs as pushing fenders since they can be fitted closely together to reduce the risk of ropes or protrusions catching between adjacent sections.

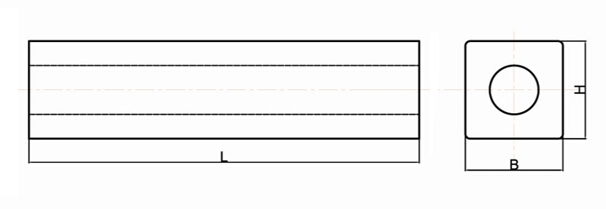

Specification:

Square Rubber Fender

Item

150HB

200HB

250HB

300HB

350HB

400HB

500HB

600HB

H

150

200

250

300

350

400

500

600

B

150

200

250

300

350

400

500

600

ØD

75

100

125

150

175

200

250

300

Ø1

60

65

75

80

85

95

105

115

Ø2

27

30

33

36

40

45

50

55

Bolt Size

M22

M26

M30

M32

M36

M38

M45

M52

Bolt Space

260-330

260-330

250-320

260-333

275-330

300-370

300-400

300-450

Reaction Force KN

117

156

195

234

273

312

390

468

Energy Absorption KNM

3.83

6.85

10.6

15.4

20.9

27.4

42.8

61.6

Units:mm

Note: Other Specification is available upon request

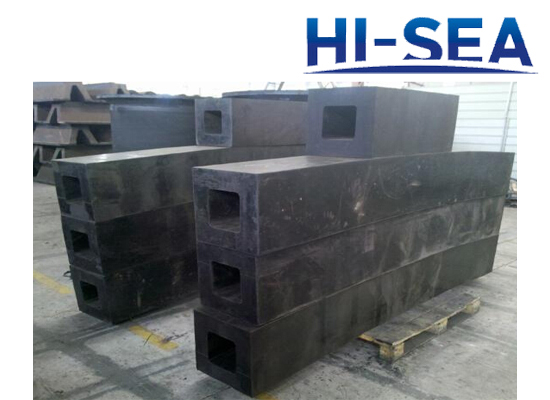

Square Rubber Fender Picture

Square Rubber Fender

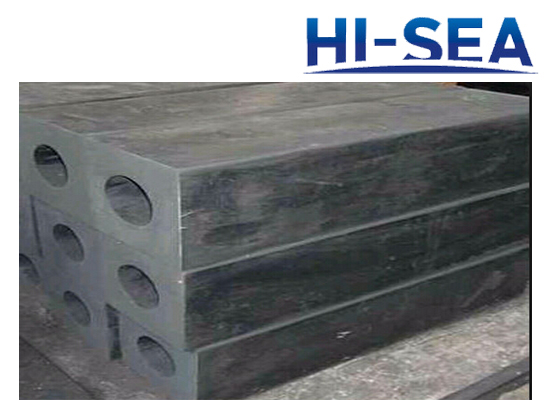

Square Rubber Fender Picture

Square Rubber Fender
