Type Wing Rubber Fender

Type Wing Rubber Fender

1. The reaction force and energy absorption of wing fender are higher than D fender

2. Compact size and expedient installation due to the ¡°wing¡± design

3. GDO Wing Fender enlarge fender bottom width and pre-built-in steel plate mount.

4. Particularly applicable for framework quay, in addition the wing fender can be arranged and used with other types of rubber fender.

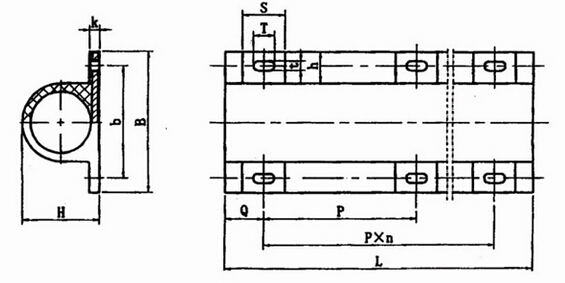

Specification:

Type Wing Rubber Fender

Type Wing Rubber Fender Dimensions Table

Type

H

B

b

L

Q

P

S

h

T

t

K

n

GD280H¡Á540¡Á1000L

280

540

430

1000

150

700

165

120

82

41

40

2

GD280H¡Á540¡Á1500L

280

540

430

1500

150

600

165

120

82

41

40

3

GD280H¡Á540¡Á2000L

280

540

430

2000

145

570

165

120

82

41

40

4

GD280H¡Á540¡Á2500L

280

540

430

2500

150

550

165

120

82

41

40

5

GD300H¡Á540¡Á3000L

300

600

490

3000

150

540

165

120

82

41

40

6

G300H¡Á600¡Á1000L

300

600

490

1000

150

700

165

120

82

41

40

2

GD300H¡Á600¡Á1500L

300

600

490

1500

150

600

165

120

82

41

40

3

GD300H¡Á600¡Á2000L

300

600

490

2000

145

570

165

120

82

41

40

4

GD300H¡Á600¡Á2500L

300

600

490

2500

150

550

165

120

82

41

40

5

GD300H¡Á600¡Á3000L

300

600

490

3000

150

540

165

120

82

41

40

6

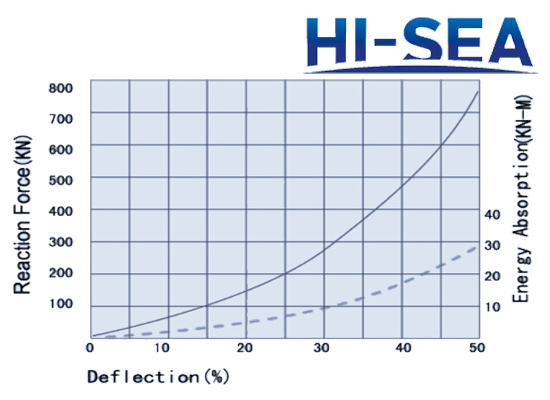

Type Wing Rubber Fender Performance Curve:

Type Wing Rubber Fender

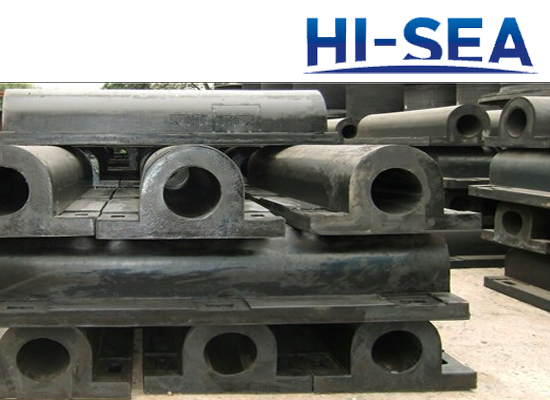

Type Wing Rubber Fender Picture

Type Wing Rubber Fender

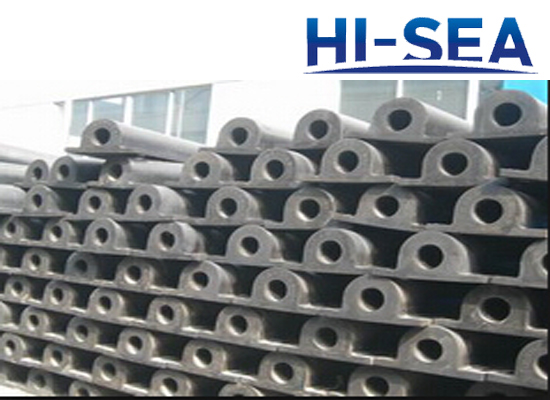

Type Wing Rubber Fender Picture

Type Wing Rubber Fender
