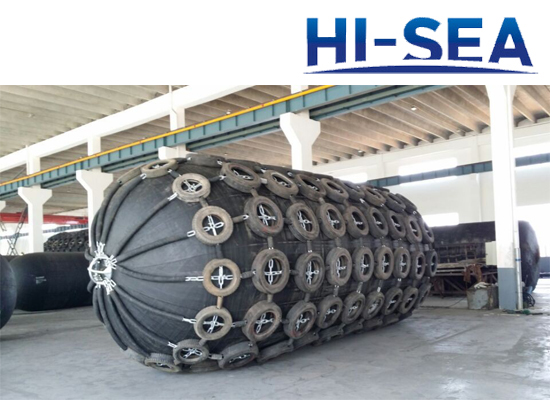

Pneumatic Rubber Fender

Pneumatic Rubber Fender

Pneumatic Rubber Fender is the leading anti-collision device for marine application in the world. This compressed air filled rubber fender is used as a protective medium for ship-to-ship contact (STS)., ship to quay (STQ) and ship-to-berthing (STB).

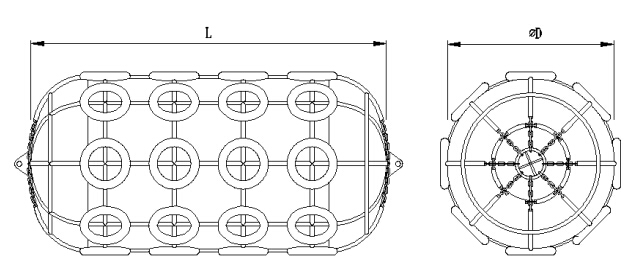

Specification:

No.	Pneumatic Rubber Fender Size (Diameter*Length)	Initial pressure	Compression ratio 60%		Max.internal pressure	Testing pressure
No.	Pneumatic Rubber Fender Size (Diameter*Length)	Initial pressure	Reaction	Absorption	Max.internal pressure	Testing pressure
	MM*MM	MPa	KN	KJ	MPa	MPa
1	1000*1500	0.05	182	32	0.16	0.28
2	1200*2000	0.05	297	63	0.16	0.26
3	1500*3000	0.05	579	153	0.15	0.25
4	2000*3500	0.05	875	308	0.15	0.25
5	2500*4000	0.05	1381	663	0.14	0.25
6	3000*5000	0.05	2000	1050	0.14	0.24
7	3000*6000	0.05	2488	1312	0.13	0.24

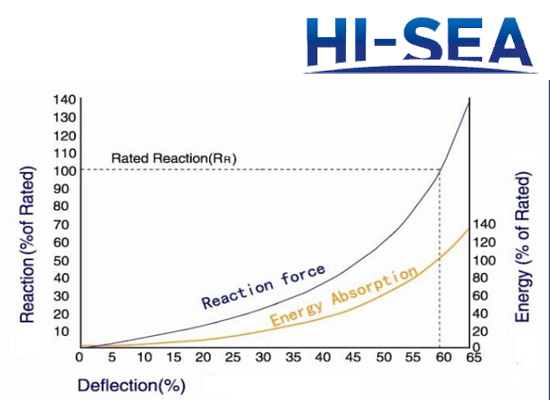

Pneumatic Rubber Fender Performance Curve

Pneumatic Rubber Fender

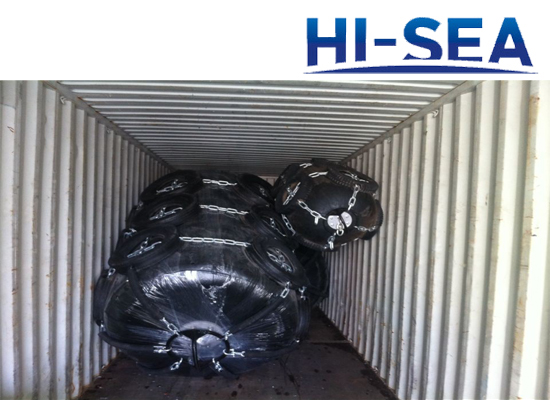

Pneumatic Rubber Fender Picture

Pneumatic Rubber Fender

Pneumatic Rubber Fender Picture

Pneumatic Rubber Fender
