Floating Rubber Fender
[Search Related Products]
Floating Rubber Fender
1£¬ Sound Floating performance which can be positioned at ideal waterline.
2£¬ Easy and fast for installation
3£¬ Applicable for pier and dock with large tide scope,ships and emergency purpose.

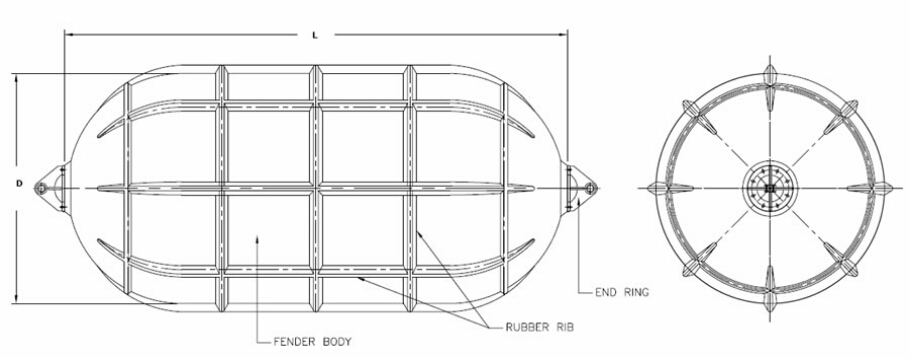

Specifications:
Specification |
D (mm) |
L (mm) |
Compression deflection 60% |
Reference Weight (kg) |
|
Reaction force(KN) |
Energy absorption (KJ) |
||||
¦µ500 x 1000L |
500 |
1000 |
71 |
8 |
68 |
¦µ600 x 1000L |
600 |
1000 |
86 |
12 |
99 |
¦µ700 x 1500 |
700 |
1500 |
161 |
27 |
202 |
¦µ1000 x 1500 |
1000 |
1500 |
205 |
49 |
412 |
¦µ1000 x 2000 |
1000 |
2000 |
274 |
64 |
550 |
¦µ1200 x 2000 |
1200 |
2000 |
337 |
93 |
810 |
¦µ1200 x2400 |
1200 |
2400 |
390 |
110 |
950 |
¦µ1350 x 2500 |
1350 |
2500 |
463 |
145 |
1252 |
¦µ1500 x 3000 |
1500 |
3000 |
624 |
216 |
1855 |
¦µ1700 x 3000 |
1700 |
3000 |
696 |
273 |
2382 |
¦µ2000 x 4000 |
2000 |
4000 |
1110 |
505 |
4596 |
¦µ2200 x 4500 |
2200 |
4500 |
1396 |
679 |
5984 |
¦µ2500 x 4000 |
2500 |
4000 |
1386 |
781 |
6869 |
¦µ2500 x 5000 |
2500 |
5000 |
1750 |
985 |
8545 |
¦µ3000 x 5000 |
3000 |
5000 |
2050 |
1410 |
12823 |
¦µ3000 x 6000 |
3000 |
6000 |
2460 |
1695 |
15387 |
¦µ3300 x 6500 |
3300 |
6500 |
2950 |
2245 |
16670 |
¦µ4500 x 9000 |
4500 |
9000 |
19650 |
7860 |
42920 |

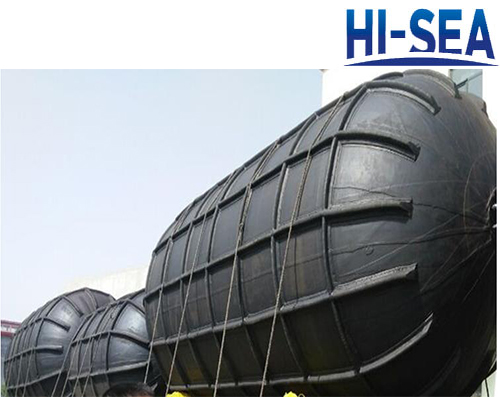

Floating Rubber Fender Picture
