Foam Filled Polyurethane Fender
[Search Related Products]Foam Filled Polyurethane Fender
Foam Filled Polyurethane Fender is a kind of constructive fender with polyurethane materials as its outer protective layer and EVA foam core forming the resilient inner parts. It has a high energy absorption compared to its reactive load meaning, its ideal for existing structures and certain hull types such as catamarans and cruise ships.
Specification:
Foam Filled Polyurethane Fender Model
(Diameter*Length)mm |
Reaction Force
KN |
Energy Absorption
KJ |
700*1500 | 129 | 24 |
1000*1500 | 180 | 52 |
1000*2000 | 272 | 76 |
1200*2000 | 308 | 98 |
1350*2500 | 432 | 157 |
1500*3000 | 596 | 244 |
1700*3000 | 652 | 310 |
2000*3500 | 893 | 495 |
2000*4000 | 1005 | 540 |
2000*4500 | 1161 | 624 |
2300*4000 | 1127 | 696 |
2300*5500 | 1671 | 1033 |
2500*4000 | 1366 | 894 |
2500*5500 | 1788 | 1200 |
3000*5000 | 1926 | 1633 |
3000*6000 | 2295 | 1851 |
3300*4500 | 1690 | 1498 |
3300*6500 | 2942 | 2601 |
3500*7000 | 3611 | 3049 |
Foam Filled Polyurethane Fender Drawing:

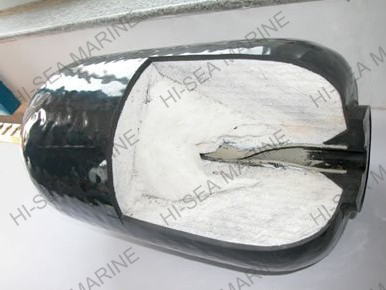

Foam Filled Polyurethane Fender Picture
