Cylindrical Rubber Fender

Cylindrical Rubber Fender

Cylindrical Rubber Fenders are simple to install and operate which makes these units an economical solution for remote locations and for multi user berths where vessel types cannot always be predicted.

Features:

1. Simple and economical design, easy to install

2. Choice of mounting system to suit different structures and applications

3.Size from 150mm to 2000mm diameter in almost any length

4. Thick fender wall resists abrasion, even after years of heavy use

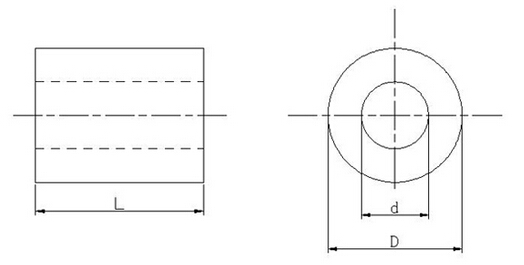

Specifications:

Cylindrical Rubber Fender

Cylindrical Rubber Fender Model Outer Diameter

(mm)

Inner Diameter

(mm)

Length

(m)

JCY150 150 75 At customers options
JCY200 200 100
JCY250 250 125
JCY300 300 150
JCY400 400 200
JCY500 500 250
JCY600 600 300
JCY700 700 350
JCY800 800 400
JCY900 900 450
JCY1000 1000 500
JCY1100 1100 600
JCY1200 1200 700
JCY1300 1300 800
JCY1400 1400 700
JCY1500 1500 750
JCY1600 1600 800
JCY1700 1700 850
JCY1800 1800 900
JCY1900 1900 950
JCY2000 2000 1000

Note:

1. Rated Deflection50; The performance mentioned above is the performance for per meter length fender. Dynamic performance in different length shall be calculated by times the multiple of 1000mm length.

2. Performance tolerance: 10

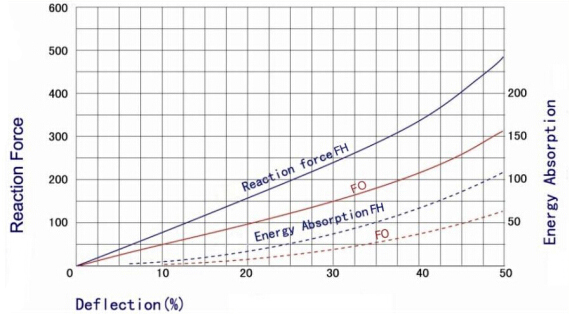

Performance Curve:

Cylindrical Rubber Fender

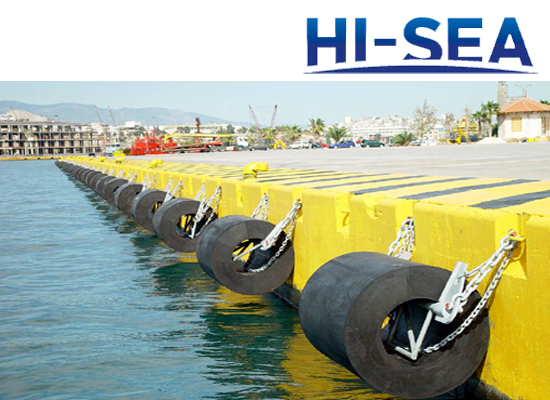

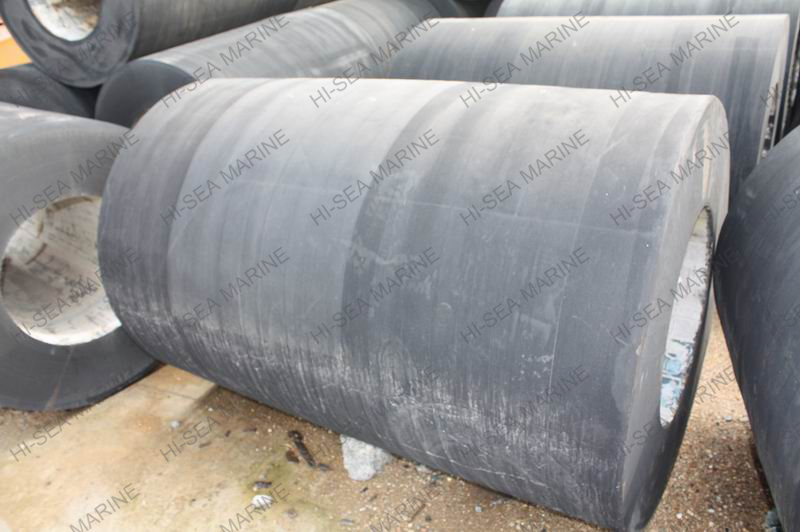

Cylindrical Rubber Fender Picture

Cylindrical Rubber Fender

Cylindrical Rubber Fender
