Type M Rubber Fender:
M fenders are widely used on the bow or stern of boats or on the corners of docks or pontoons. The M shape of this fender provides flexibility and it can therefore easily follow the contour of a bow or stern. This type of fender has a wide and flexible contact surface. The grooves on the top provide extra grip and three flexible legs to ensure good contact and sturdy attachment.
Feature
Low reaction force, high energy absorption.Easy to be installed and main-tained
Specification:
Profile size
Type |
h |
s |
w |
t |
b |
m |
d |
e |
f |
g |
k |
i |
r |
q |
M300 |
300 |
396 |
60 |
33 |
204 |
140 |
750 |
640 |
140 |
70 |
35 |
105 |
24 |
230 |
M400 |
400 |
528 |
80 |
44 |
272 |
150 |
1000 |
870 |
165 |
82 |
41 |
120 |
30 |
290 |
M500 |
500 |
660 |
100 |
55 |
340 |
160 |
1250 |
1090 |
180 |
94 |
46 |
140 |
33 |
325 |
M600 |
600 |
776 |
120 |
66 |
408 |
170 |
1500 |
1310 |
195 |
100 |
50 |
160 |
36 |
430 |
M800 |
800 |
1035 |
160 |
88 |
544 |
180 |
2000 |
1740 |
270 |
136 |
68 |
260 |
48 |
430 |
Length Size
Type |
L=1000 |
L=1500 |
L=2000 |
|||||||||
L1 |
C |
P |
n |
L1 |
C |
P |
n |
L1 |
C |
P |
n |
|
M300 |
1150 |
140 |
870 |
1 |
1650 |
140 |
685 |
2 |
2150 |
137.5 |
625 |
3 |
M400 |
1200 |
150 |
900 |
1 |
1700 |
150 |
700 |
2 |
2200 |
147.5 |
635 |
3 |
M500 |
1250 |
160 |
930 |
1 |
1750 |
160 |
715 |
2 |
2250 |
157.5 |
645 |
3 |
M600 |
1300 |
170 |
960 |
1 |
1800 |
170 |
730 |
2 |
2300 |
167.5 |
655 |
3 |
M800 |
1400 |
180 |
1040 |
1 |
1900 |
180 |
770 |
2 |
2400 |
180.0 |
680 |
3 |
Performance:
Type
|
Design Compressive Deflection(%) |
Tolerance% |
|||||
High Reaction Force |
Stand Reaction Force |
Reaction Force |
|||||
Reaction Force |
Energy Absorption |
Reaction Force |
Energy Absorption |
Reaction Force |
Energy Absorption
|
||
M300¡Á1000L |
257 |
29.4 |
213 |
24.3 |
182.3 |
20.6 |
¡À10 |
M400¡Á1000L |
341 |
53.0 |
282 |
44.1 |
242.0 |
37.2 |
|
M500¡Á1000L |
427 |
83.3 |
354 |
68.6 |
304.0 |
58.8 |
|
M600¡Á1000L |
514 |
120.0 |
425 |
100.0 |
366.0 |
84.2 |
|
M800¡Á1000L |
685 |
213.0 |
566 |
177.3 |
486.0 |
150.0 |

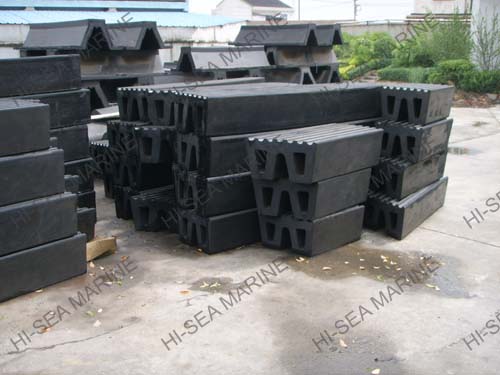

Type M Rubber Fender Picture
