Type W Rubber Fender
[Search Related Products]
Type W Rubber Fender:
W fenders are designed for use in extreme conditions and to absorb excessive bumps and knocks. This type of fender is very suitable for application on the bow and stern of tugs, workboats and icebreakers. The grooves on the top of the fender provide extra grip and low pressure while pushing. With two flexible legs also allow for easy installation of the W fender with a large or small radius by means of guide rods
Feature:
1.High energy absorption, low reaction force.
2.Easy to be installed and maintained
Application:
tugboats
• workboats
• icebreakers
• barges
• supply boats
• corners of quays
• bridge sections
Specification:
Type |
Size(mm) |
|||
B |
B1 |
H |
L |
|
W300 |
480 |
426 |
300 |
300-2000 |
W330 |
550 |
420 |
330 |
300-2000 |
W450 |
500 |
420 |
450 |
300-2000 |
Type |
Size(mm) |
|||
B |
B1 |
H |
L |
|
W300 |
600 |
546 |
300 |
300-2000 |
W400 |
600 |
550 |
400 |
300-2000 |

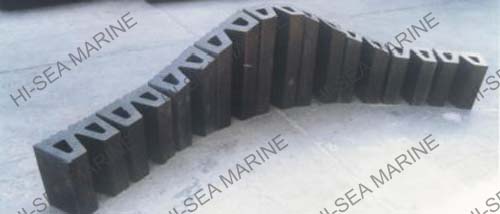

Type W Rubber Fender Picture
