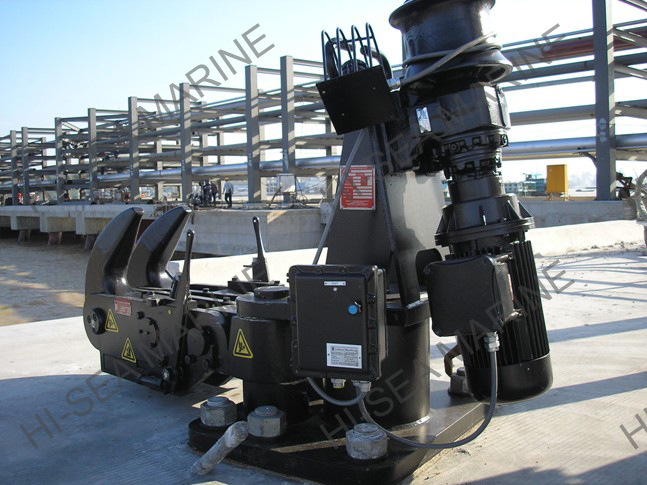

Double Quick Release Mooring Hook

Double Quick Release Mooring Hook

Quick release hook, mounted on the pier, is a special device for ship¡¯s stranding, mooring and releasing ropes. It is the renewal product of bollards. Marine quick release hooks reduce the labor intensity of workers, improve the labor efficiency and enhance the safety and reliability. It is widely used under in the place where need mooring or releasing ropes safely and immediately. Quick release hook can be optionally equipped with remote monitoring and control system. It has the functions of anchor hook pin axis load monitoring, liquid crystal display, remote control, overload sound and light alarm and other function.

Main Technical Performance

1. Hook¡¯s motion range: lateral horizontal movement within the range of 90 degrees , 45 degrees vertical elevation

2. Handle Operation Force <150N

3. The fore-end of anchor hook is equipped with elastic cushion, which prevent the collision between the hook and frame

4. Motor: three phase380V 50HZ or 400V 60HZ,Optional explosion-proof or non-explosion proof.

5. Brake: short circuit protection, over load protection

6. Optional Level of Protection: IP55,IP56,IP65,IP66

7. Manual release, pneumatic or hydraulic release

Quick release hook can be assembled with single hook, double hooks, triple hooks and quadruple hooks.

Specification of Double Quick Release Hook

1. Safe Working Load: 400kN to 1500kN

2. Capacity Mounting Base: 800kN to 3000kN

3. Weight: 491~2332kg

4. Quantity of Hook: 2 hooks

5. Material: Hook body: Cast steel or quality alloy

6. Entirely sprayed with zinc and the thickness.

7. Easy and safe release with either a slack or loaded mooring line

8. Free swiveling

9. Locking device to prevent accidental or unauthorized operation

10. Optional integral capstans for hauling in the mooring line

11. Optional remote control system for remote hook release

12. Optional mooring load monitoring system for continuous measurement of mooring loads

13. Can be customized for special requirements

14. Certificate: CCS, ABS, BV, GL,DNV,LR etc.

For more detail information, please feel free to contact us via e-mail or phone call.

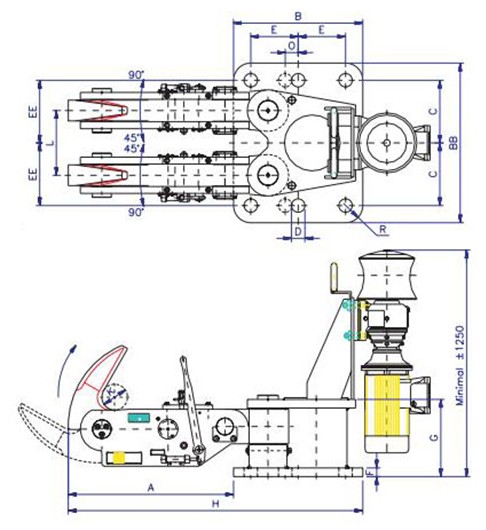

Drawing of Double Quick Release Mooring Hook

S.W.L. Cap. Wt. A B BB C D E EE F G H K R X
400 800 491 583 650 700 260 54 235 260 35 370 1233 96 90 6*M48
600 1200 878 788 750 780 290 62 275 290 45 407 1536 130 100 6*M56
750 1500 1049 888 750 850 325 70 275 325 45 417 1638 130 100 6*M64
1000 2000 1439 959 750 925 363 78 275 363 50 447 1709 150 100 6*M72
1250 2500 1602 1030 750 925 363 86 275 363 55 479 1780 150 100 6*M80
1500 3000 2332 1210 750 1000 400 86 275 400 55 499 1960 150 100 7*M80

Explanation:

Cap. = Capacity Mounting Base in kN

Wt. = Weight in kilograms, excl. Capstan

X. = Number ans size of HD Bolts

S.W.L. = Working Load in kN
