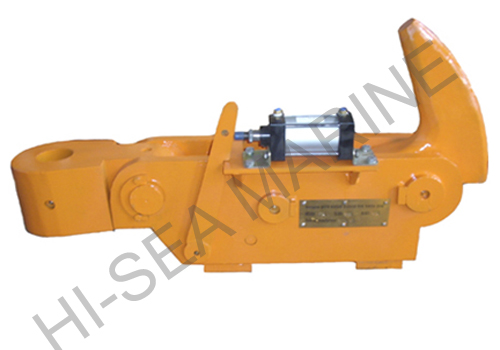

Pneumatic Release Harbour Towing Hook

Pneumatic Release Harbur Towing Hook

Harbour towing hook is used to enable the ships to be towed safely though ships work under severe working conditions. It can release the towing line whether it is under slack or full safe working load. Harbor towing hook can be released manually or through remote control from the wheelhouse by pulling the release wire or by pushing a button. The remote control systems can be supplied with either a hydraulic or pneumatic release mechanism.

Pneumatic release harbour towing hook is released by the pneumatic release mechanism. It greatly reduces the labor intensity and improve the labor efficiency, safety and reliability. This type of quick release hook releases the towing in a short time to protect the safety of ships and personnel and then avoid big losses.

Specification:

1.Type: Harbour Type

2.Control System: Pneumatic Release Operation

3.Usage: Ship Mooring and Towing

4.Material: Steel

5.Safe Working Load: 150kN to 1000kN

6.Test Load: 300kN to 1500kN

7.Release Load: 150kN to 1000kN

8.Weight: 52kg to 526kg

9.Movement: Side Movement

10.Pneumatic Release from Wheelhouse

11.Durable and Long Lifetime for Use

12.Certificate: CCS,ABS, BV, DNV, LR, NK etc.

13.Custom Service for Special Requirement

We supply all types of Marine Towing Hook. For more detailed information, please free to contact us.

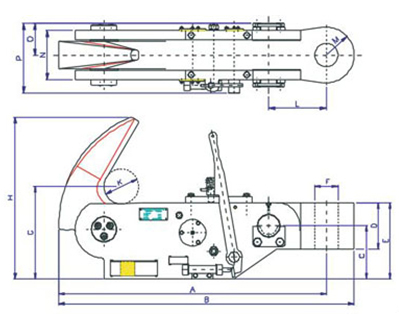

Drawing of Pneumatic Release Harhour Towing Hook

unit: mm

S.W.T	T.L	R.L	W.t	A	B	C	D	E	F	G	H	K	L	M	N	N	P
150	300	150	52	521	571	100	100	150	40	174	316	65	110	50	100	100	150
300	600	300	143	788	868	160	130	225	60	268	461	96	180	80	125	125	207
450	900	450	289	1023	1123	200	160	260	80	350	616	130	210	100	148	148	224
562	1125	562	352	1073	1183	200	290	290	90	350	616	130	250	110	170	170	245
1000	1500	1000	526	1159	1279	230	330	330	100	400	700	150	250	120	212	212	333

Remark:

S.W.L. = Safe Working Load in KN

T.L. =Test Load in KN

R.L. = Release Load in KN

Wt. = Weight in Kilograms

Pneumatic Rlease Harbor Towing Hook
