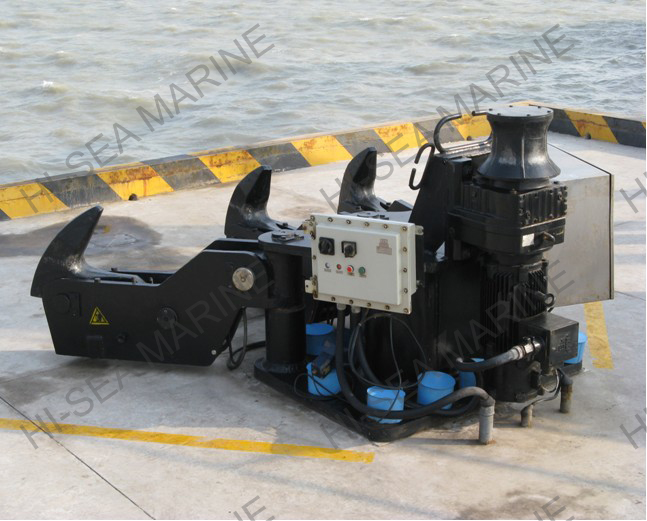

Triple Quick Release Mooring Hook

Triple Quick Release Mooring Hook

Quick release hook mainly consists of cable releasing mechanism and winch mechanism. It is especially suitable for large terminals where have less operators, large wind and waves and need mooring and releasing the mooring ropes immediately. Quick release hook can help the mooring ropes released from the its hook once the vessel has to leave the dock for emergency. It ensures both the dock and vessel¡¯s safety and avoids large losses.

Quick release mooring hook can be assembled with single hook, double hooks, triple hooks and quadruple hooks. To meet different requirements of our customers, we supply various types and sizes of quick release hooks. For more detail information, please do not hesitate to contact us via e-mail or phone call. We're sincere to establish Long-term cooperation relationship with you.

Features of Triple Release Mooring Hook

1. Designed to Withstand Harsh Marine Environments

2. Manual release, pneumatic or hydraulic release options

3. Easy and safe release with either a slack or loaded mooring line

4. Wide Range of Movement (horizontal and vertical)

5. Easy to Install and Maintain

6. Protect the Safety of Vessel and Personnel, Avoid Large Losses

7. Mooring Load Monitoring System for Option

8. Locking device to prevent accidental or unauthorized operation

9. Integral Capstan for option

10. Certificate: ABS, CCS, BV, DNV, LR, NK etc.

11. Meet all special requirements of our customers

Main Technical Hook:

1. Number of Hooks: 3 Hooks

2. Safe Working Load: 400kN to 1500kN

3. Weight exclude Capstan: 1200kg to 3586kg

4. Operating force by handle: < 150N

5. Swing angle of hook body in horizontal: 45~90degrees

6. Swing angle of hook body in vertical: 45degrees

7. Puling speed of electric capstan: 18~25m/min

8. Pull of electric capstan: 10KN~30KN

9. Working diameter of capstan: 250mm

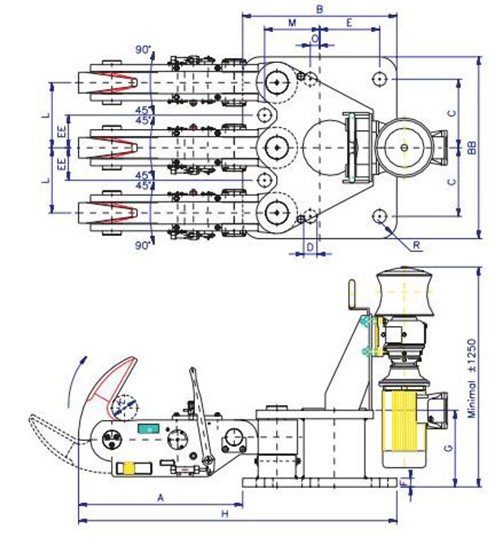

Drawing of Triple Quick Release Mooring Hook

S.W.L Cap. Wt. A B BB C D E EE F G H K L M O R X
400 1200 707 598 700 800 310 62 260 145 35 370 1296 96 290 275 90 6*M56
600 1800 1268 863 800 900 335 70 310 162 45 407 1663 130 325 310 65 100 6*M64
750 2250 1540 893 850 1000 375 78 325 175 45 417 1743 130 350 325 60 100 6*M72
1000 3000 2144 959 900 1060 400 78 350 190 50 417 1859 150 380 322 55 100 6*M72
1250 3750 2450 1030 900 1060 400 86 350 190 55 479 1930 150 380 322 55 100 7*M80
1500 4500 3586 1235 1020 1200 475 96 385 212 55 499 2255 150 425 385 115 125 7*M90

Explanation:

Cap. = Capacity Mounting Base in kN

Wt. = Weight in kilograms, excl. Capstan

X. = Number ans size of HD Bolts

S.W.L. = Working Load in kN
