Marine Quick Release Disc Towing Hook
Marine towing hooks are various in types and sizes. Disc towing hook is one common type of towing hooks and widely applicable to ship mooring and towing. Comparing to the traditional marine bollards, quick release towing hook not only reduces the labor intensity but also improve the labor efficiency, the safety and the reliability.
We supply both manual release and pneumatic release towing hooks. For more details, please do not hesitate to contact us. We¡¯re sincere to establish cooperation relationship with you.
Specification:
1. Type: Disc Type
2. Control System: Manual Control or Remote Control
3. Safe Working Load: 15ton to 100ton
4. Material:Steel
5. Movement: Side Movement
6. Usage: Mooring and Towing
7. Application: Harbor, Dock, Vessel, Ship
8. Color: Yellow, Red, Black as required
9. Durable, Long Lifetime
10. High Quality with Competitive Price
11. Certificate: ABS, CCS, BV, LR, NK, DNV etc.
12. Customized Sizes or Types

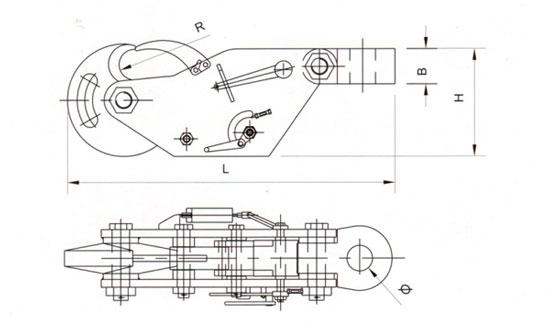

Marine Quick Release Disc Towing Hook
SWL (t) |
H (mm) |
L (mm) |
B (mm) |
§¶ (mm) |
R (mm) |
15 |
310 |
1050 |
110 |
75 |
50 |
20 |
360 |
1190 |
130 |
85 |
60 |
30 |
390 |
1215 |
140 |
90 |
60 |
40 |
430 |
1460 |
150 |
100 |
65 |
50 |
560 |
1660 |
180 |
130 |
75 |
60 |
570 |
1700 |
190 |
130 |
80 |
80 |
590 |
1800 |
200 |
140 |
80 |
100 |
620 |
1920 |
220 |
150 |
88 |
