Marine Dock Quick Release Towing Hook
[Search Related Products]
Marine Dock Quick Release Towing Hook
Marine quick release hook is used on tugs for buckling and hanging towing ropes. It is a special device for releasing towing line when vessels face emergency cases. Marine quick release hook has various types and sizes in order to meet customer¡¯s different usage and requirements.
This towing hook is a multi-functional marine dock towing hook. It can release mooring ropes immediately once the operator disconnects the locking mechanism when the dock or vessel is on fire or under other emergent situation, which protects both the dock and ships and avoid large losses.
Specification:
1. Safe Working Load:30t to 100ton
2. Material: Steel
3. Usage:Mooring and Towing
4. Application: Deck, Harbour, Dock, Vessel, Ship
5. Various Sizes to Meet Different Need of Usage
6. Get Approvals of CCS, ABS, BV, LR, DNV,NK etc.
7. Provide Customized Service
8. High Quality, Stable Performance
9. Competitive Price, Short Delivery, Excellent After-Sale Service
10. 12 Months Warranty Time
Our company is a 7-year gold supplier of Marine Equipment. We are sincere to do business with you. If you have any questions, please feel free to contact us. We¡¯ll try to give you a quick and satisfactory reply.

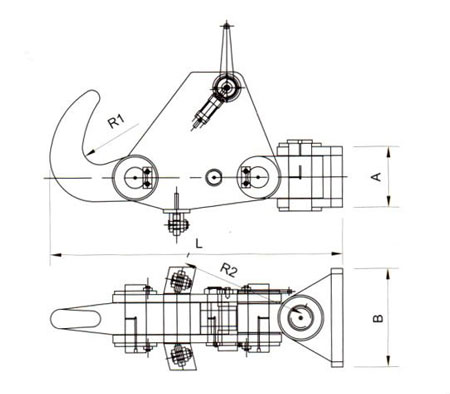

Drawing of Quick Release Hook Dock Type
Type |
SWL(t) |
A(mm) |
B(mm) |
L(mm) |
R1(mm) |
R2(mm) |
SLTL30 |
30 |
210 |
340 |
1050 |
65 |
430 |
SLTL40 |
40 |
220 |
345 |
1100 |
65 |
450 |
SLTL50 |
50 |
276 |
448 |
1332 |
80 |
577 |
SLTL60 |
60 |
295 |
475 |
1415 |
85 |
613 |
SLTL80 |
80 |
350 |
560 |
1680 |
100 |
721 |
SLTL100 |
100 |
450 |
630 |
2100 |
125 |
921 |
