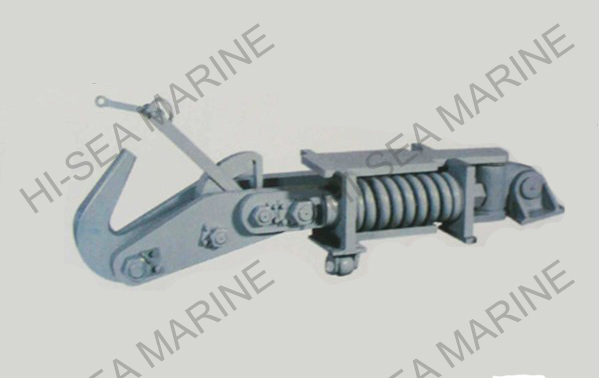

Spring Towing Hook

Spring Towing Hook

Spring towing hook is one type of marine towing hooks that are used for towing or releasing the mooring line. Marine towing hook is easy to operate and release the mooring line in a short time. It is more effective than marine bollards, which reduces the labor intensity and improve the labor efficiency, safety and liability.

To meet customer’s different requirements, spring towing hooks have different types and sizes. We supply pneumatic release spring towing hook, manual release spring towing hook, springless towing hook and other customized towing hooks according to your requirements.

Specification

1. Type: Spring Type, Springless Type

2. Control System: Pneumatic Release, Manual Release

3. Usage: Mooring or Towing

4. SWL: 15 to 100t

5. Color: Red, Black, Grey etc.

6. Smooth Surface without Sharp Corners, Cracks

7. Lubricated on the Friction Surface

8. High Quality, Competitive Price, Excellent Service

9. Certificate: ABS,CCS,BV, LR,DNV, GL etc.

10. Customized according to Customer’s Requirements

We supply all types of marine towing hooks and marine equipment. For more detail information, please do not hesitate to contact us. We are sincere to establish cooperation relationship with you.

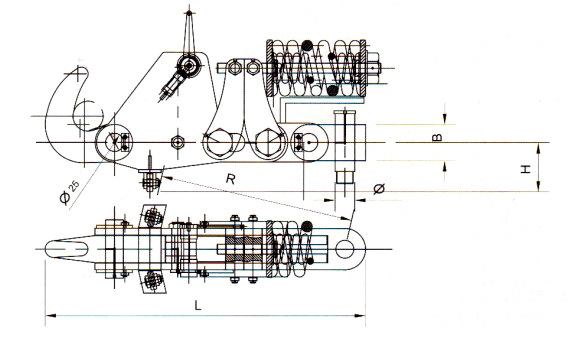

Drawing of Spring Towing Hook

SWL (t)	H (mm)	L (mm)	B (mm)	Ф (mm)	R (mm)
15	240	1380	134	85	880
20	255	1520	144	85	920
30	265	1680	152	95	940
40	280	1860	200	105	1050
50	285	1920	204	110	1100
60	290	1960	204	110	1150
80	340	2100	210	130	1310
100	380	2300	220	150	1430

Spring Towing Hook
