Manual Release spring towing hook is used for emergency towing and port towing. It enables ships to be towed safely under tough working conditions and allows the towing line to be released under slack or full safe working load. This towing hook reduces the labor intensity of workers, improve the labor efficiency, safety and reliability when the ships or dock face emergency and need releasing the mooring line immediately.

Specification:

Type: Spring Type

SWL: 16KN to 400KN

Usage: Mooring and Towing

Application: harbor, dock, vessel, ship

Material: Steel

Color: Grey, Red, Black etc. as Required

Customized Products according to Customer’s Requirements

Applied Standard: ISO1704-2007, IACSW18 and W22, API-2F(U.S.A), Rules of Classification Society, GB/T 549-1996(China) and other non-standard products in order to meet customer’s special requirements.

Approved Societies: Approved by 11 International Classification Societies such as ABS, CCS, BV, GL, RS, DNV, KR etc.; ISO Quality Management System ISO9001-2000, API-Q1 Quality and ISO/CD14690(HSE) management system have been separately approved by API(USA), CSQA(China) and QSMSCC(China)

We supply various types of marine towing hooks. For more information, please do not hesitate to contact us.

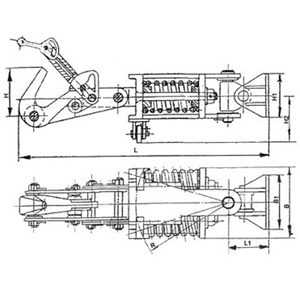

Drawing of Manual Release Spring Towing Hook

Max.load(KN)	L	L1	B	B1	H	H1	H2	R	Weight(KG)
16	822	145	232	150	180	150	157	309	56.6
25	916	142	260	130	190	130	141	345	83.7
40	1180	184	330	208	270	228	189.5	445	177.9
63	1411	196	342	200	284	160	192	563	267.9
100	1710	253	410	260	376	250	256.5	684	558.1
160	1936	270	458	320	400	210	261	741	646.9
220	2448	324	560	310	490	300	310	952	1269.1
320	2128	315	590	342	430	280	332	828	1058.8
400	2259	330	640	320	472	300	355	880	1340.1
