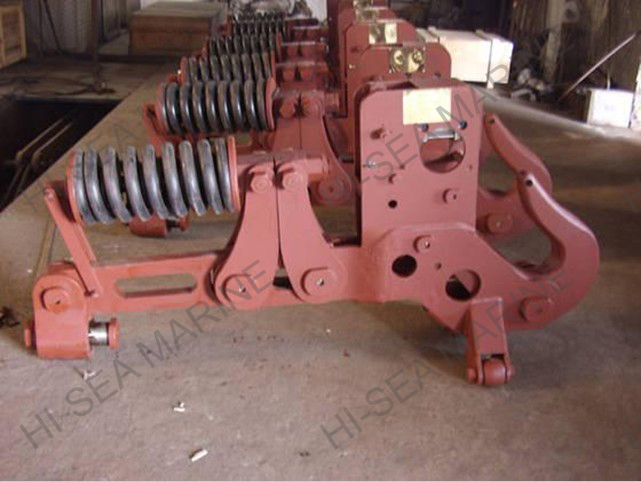

Pneumatic Release Spring Towing Hook

Pneumatic Release Spring Towing Hook

Pneumatic spring towing hook, namely, is one type of marine towing hook which is controlled by pneumatic release mechanism and has a spring. This type of towing hook makes the ships be towed safely even under severe working conditions and allows the towing line to be released whether slack or under full safe working load. The towing hooks have a quick release mechanism that facilitates the instantaneous disengagement of the towing line to ensure the safety of the tug and personnel. The pneumatic release spring towing hook is released through remote control system from the wheel house by pulling the release wire or by pushing a button.

Specification

1. Usage:mooring & towing

2. Standard: CB*3064-79

3. Type: Spring Type

4. Operation System: Pneumatic Control

5. SWL: 200KN to 600KN

6. Material: Steel (most parts)

7. Smooth Surface without Burrs, Cracks, Blackspot or Any Other Defects;

8. Pass the Strength Test and Painted by Anti-rust Paint on the Surface

9. Certificate: CCS,BV,ABS,GL,LR,NK etc.

10. Customized Products for Customer’s Needs

We supply all kinds of marine towing hooks. For more detail information, please feel free to contact us.

Available Type of Marine Towing Hooks:

1. Spring Towing Hook

2. Disc Towing Hook

3. Quick Release Hook

4. Pelican Hook

5. Marine Harbour Towing Hook

6. Manual Release Spring Towing Hook

7. Manual Release Springless Towing Hook

8. Pneumatic Release Disc Towing Hook

9. Hydraulic Release Disc Towing Hook

10. Hydraulic Release Harbour Towing Hook

11. Single Quick Release Mooring Hook

12. Double Quick Release Mooring Hook

13. Triple Quick Release Mooring Hook

14. Quadruple Quick Release Mooring Hook

Drawing of Pneumatic Release Spring Towing Hook

SWL (KN)	Dimensions (mm)					Weight (kg)	Link Dimensions (mm)			Roller Radius of Action (mm)	Air Cylinder Pressure (Mpa)
	A	B	C	D	E		G	H	I
200	1830	1630	340	R50	614	342	70	150	210	1400~1475	0.6~0.8
300	2015	1780	384	R70	805	595	85	170	240	1690~1805
400	1935	1655	404	R75	830	697	90	190	260	1490~1590
600	2270	1906	485	R90	940	1234	110	240	340	1740~1845
