Marine quick release hook is characterized by reliable mooring and quick releasing. It not only solves the problem of traditional dock’s mooring and releasing, greatly reducing the the emergent accidents but also can be assembled with electric winch mechanism,which greatly reduces the labor intensity of artificial dragging rope.

Features

1. New Marine Mooring Device Applicable to Modern Dock at River or Sea

2. Easy and Agile Operation

3. Safe Mooring

4. Quick Release when in Emergency

5. Reduce the Labor Intensity

6. Remote or Manual Release for Options

7. Wide Range of Movement (Horizontal and Vertical)

8. Integral Capstan Remote Control System (optional)

9. Mooring Load Monitoring System (optional)

10. Special Customized Features

Specification

1. Number of Hooks: 4 hooks

2. Safe Working Load: 400kN to 1500kN

3. Capacity Mounting Base: 1600kN to 6000kN

4. Weight exclude Capstan: 938kg to 4698kg

5. Operating force by handle: < 150N

6. Swing angle of hook body in horizontal: 45~90 degrees

7. Swing angle of hook body in vertical: 45degrees

8. Puling speed of electric capstan: 18~25m/min

9. Pull of electric capstan: 10KN~30KN

10. Working diameter of capstan: 250mm

11. Motor: three phase380V 50HZ or 400V 60HZ,Optional explosion-proof or non-explosion proof.

12. Brake: short circuit protection, overload protection

13. Optional Level of Protection: IP55,IP56,IP65,IP66

Quick release hooks can be assembled with single hook, double hooks, triple hooks and quadruple hooks. For more detail information, please feel free to contact us.We’ll try to give you a quick and satisfactory reply.

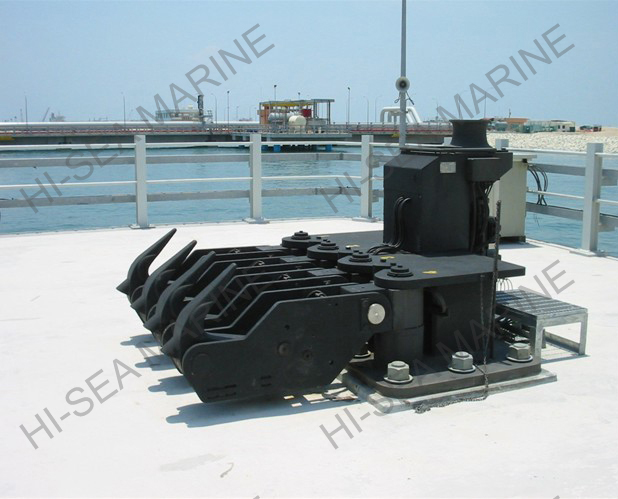

Quadruple Quick Release Mooring Hook

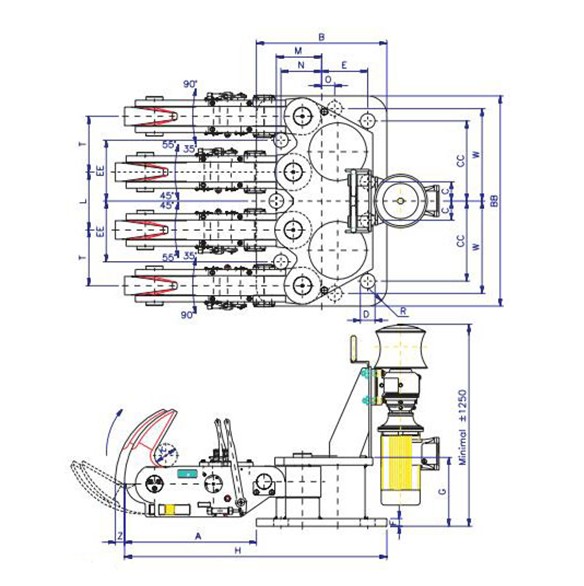

Drawing of Quardruple Quick Release Mooring Hook

SWL (KN)	Capacity (KN)	Weight (kg)	Dimensions (mm)
SWL (KN)	Capacity (KN)	Weight (kg)	A	B	BB	C	CC	D	E	EE	F	G	H	K	L	M	N	R	T	Z	X
400	1600	928	578	650	1120	100	470	70	235	300	35	370	1228	96	300	235	235	90	300	40	7×M64
600	2400	1670	778	750	1185	115	445	78	275	330	45	47	1528	130	325	255	230	100	320	56	7×M72
700	3000	2032	823	800	1300	150	505	86	290	355	45	417	1623	130	350	280	265	100	340	50	7×M80
1000	4000	2807	859	850	1365	125	520	96	300	395	50	447	1709	150	376	295	265	125	362	60	7×M90
1250	5000	3199	930	850	1365	125	520	96	300	395	55	479	1780	150	376	295	265	125	362	60	7×M90
1500	6000	4698	1118	825	1570	170	605	86	325	435	55	499	2043	150	426	280	280	135	415	60	9×M80

Explanation:

Cap. = Capacity Mounting Base in kN

Wt. = Weight in kilograms, excl. Capstan

X. = Number ans size of HD Bolts

S.W.L. = Working Load in kN
