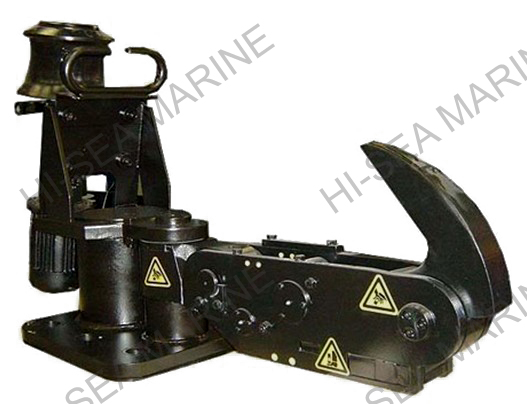

Single Quick Release Mooring Hook

Single Quick Release Hook

Quick release hook consists of two parts: towing mechanism and mooring mechanism. It has the features of automatic cable stranding, safe and reliable mooring and quick releasing, which is a new indispensable mooring equipment for large wharfs. We supply quick release hook with single, double, triple, quadruple assembly among which the double and triple hook assembly are used widespread.

Main Technical Features

1. The anchor hook is made from high quality alloy steel; the whole equipment is sprayed with zinc; pass non-destructive testing;
2. Manual release the lever, electric winch controlled by the pedal switch; the motor carries the brake and has the function of preventing reverse;

3. The anchor hooks can quickly remove the cable whether under the full load or non-load;

4. With automatic reset function;

5. Maintenance free design, no need of daily maintenance;

6. Specialized production according to customer's demand

Main technical hook:

1. Operating force by handle: <150N

2. Pull of hook body for one unit: 350-2500KN

3. Quantity of hook body for one handle: 1hook

4. Swing angle of hook body in vertical: 450

5. Swing angle of hook body in horizontal: 45~900

6. Puling speed of electric capstan: 18~25m/min

7. Pull of electric capstan: 10KN~30KN

8. Working diameter of capstan: 250mm

We supply all types of Marine Towing Hook. For more detail information, please feel free to contact us via e-mail or phone call.

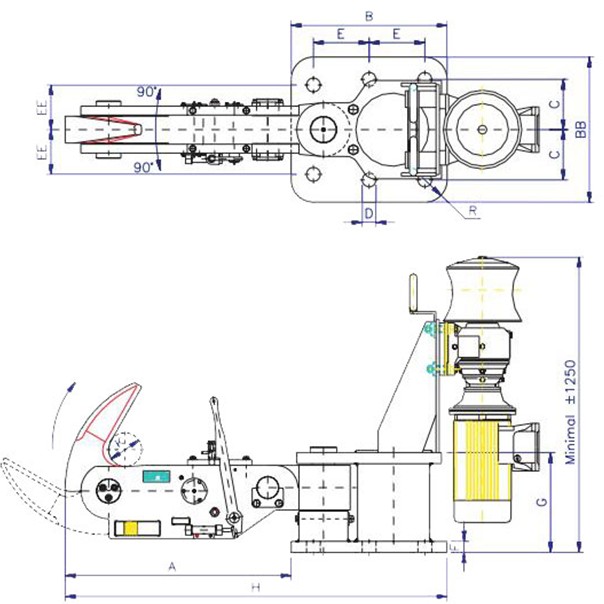

Drawing of Single Quick Release Mooring Hook

S.W.L	Cap.	Wt.	A	B	BB	C	D	E	EE	F	G	H	K	R	X
400	400	304	668	600	600	225	54	225	225	35	370	1268	96	75	4*M48
600	600	512	873	650	650	235	54	235	200	45	407	1523	130	90	6*M48
750	750	587	923	650	650	225	62	225	200	45	417	1573	130	100	6*M56
1000	1000	792	1014	700	650	225	62	250	200	50	447	1714	150	100	6*M56
1250	1250	887	1085	700	650	225	70	250	200	55	479	1785	150	100	6*M64
1500	1500	1253	1255	700	650	225	78	250	195	55	499	1955	150	100	6*M72

Explanation:

Cap. = Capacity Mounting Base in kN

Wt. = Weight in kilograms, excl. Capstan

X. = Number ans size of HD Bolts

S.W.L. = Working Load in kN
