FA-TPY Shipboard Power and lighting cable 0.6/1kV

[Search Related Products]

FA-TPY Shipboard Power and lighting cable 0.6/1kV


FA-TPY Shipboard Power and lighting cable 0.6/1kV Applications
For fixed installations on ships and offshore-units in all locations.
Flame-Retardant,Three core,EP rubber insulated,PVC sheathed,Steel wire braid Shipboard Power cable.

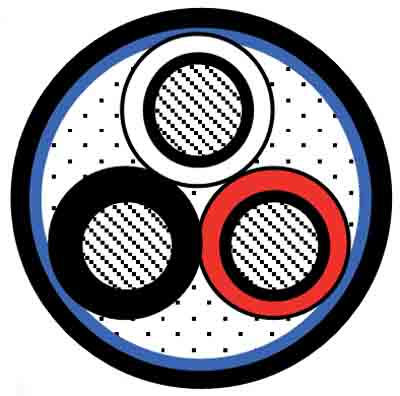

FA-TPY Shipboard Power and lighting cable 0.6/1kV Construction:

1.Conductor:Tinned Annealed Stranded Copper,Class2 IEC60228.
2.Insulation:(EPR),Ethylene Propylene Rubber
3.Filler:Non-Hygroscopic Material
4.Sheath:(PVC),Polyvinyl Chloride

FA-TPY Shipboard Power and lighting cable 0.6/1kV

Conductor S(D,T) Tinned annealed stranded copper, class 2 according to IEC 60228
Conductor screen Semi-conducting compound
Insulation P 85ˇăC EPR as per IEC 60092-351
Cabling Insulated conductors shall be cabled.
Flame retardant & non-hygroscopic fillers may be used
Overall shield S Tinned copper wire braid
Bedding Y PVC as per JIS C 3401
Core identification 1C Black
2C Black, White
3C Black, White, Red
Outer sheath color Black


FA-TPYC Shipboard Power and Lighting Cable 0.6/1KV Standard
JIS C 3410-1999
IEC 60092-350
IEC 60332-1
IEC 60332-3 Cat.AF(for FA-type)
