FA-TPYCY Shipboard Power and Lighting Cable 0.6/1KV

FA-TPYCY Shipboard Power and Lighting Cable 0.6/1KV Applications
For fixed installations on ships and offshore-units in all locations.
Flame-Retardant,Three core,EP rubber insulated,PVC sheathed,Steel wire braid,PVC cover Shipboard Power cable

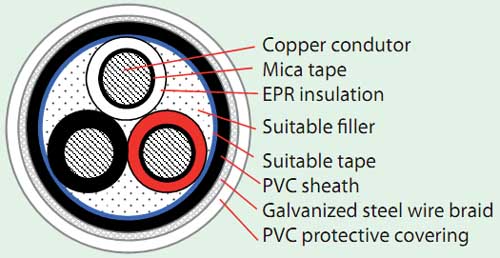

FA-TPYCY Shipboard Power and Lighting Cable Construction

1.Conductor:Tinned Annealed Stranded Copper,Class2 IEC60228.
2.Insulation:(EPR),Ethylene Propylene Rubber
3.Filler:Non-Hygroscopic Material
4.Sheath:(PVC),Polyvinyl Chloride
5.Armor:Galvanized Steel Wire Braid
6.Protective cover:(PVC),Polyvinyl Chloride

Conductor	S(D,T)	Tinned annealed stranded copper, class 2 according to IEC 60228
Conductor screen		Semi-conducting compound
Insulation	P	85°C EPR as per IEC 60092-351
Cabling		Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used
Overall shield	S	Tinned copper wire braid
Bedding	Y	PVC as per JIS C 3401
Armor	C (CB)	Galvanized steel wire braid(-C TYPE) or copper alloy wire braid(-CB TYPE)
Sheath	Y	PVC as per JIS C 3401
Core identification		1C Black 2C Black, White 3C Black, White, Red
Outer sheath color		Black

FA-TPYCY Shipboard Power and Lighting Cable 0.6/1KV Standard
JIS C 3410-1999
IEC 60092-350
IEC 60332-1
IEC 60332-3 Cat.AF(for FA-type)
