FMGCG Marine Communication cable with screen 150/250V

FMGCG Marine Communication cable with screen 150/250V


FMGCG Marine Communication cable with screen 150/250V Applications

1.For fixed installations in communication,radio,control,data processing facilities on ship and offshore.
2.The ship cable meet the flame test requirements for bunched.(IEC 60332-3,IEEE 45-18.13)


Standard : DIN 89159

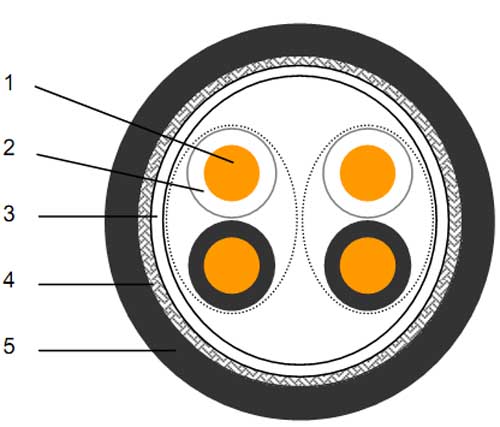

Cable Construction

FMGCG Marine Communication cable with screen 150/250V

1.Conductor:Annealed Standard Copper,Class 2.
2.Insulation:EPR(Cross-linked Ethylene Propylene Rubber)
3.Laying Up:Pair stranding(2 pair cable=quad stranding)
4.Armour:Separator tape,bare copper braid
5.Outer sheath : Cross-linked Polychloroprene Rubber,Black.


Electrical Characteristics

1.Rated Voltage Uo/U(Um):150/250V
2.Test Voltage:1500V

Usage Characteristics

1.Max.Conductor temperature in service:85 ¡ãC
2.Short-circuit max.conductor temperature:250 ¡ãC
3.Minimum installation temperature:¨C10 ¡ãC
4.Minimum operating temperature:¨C35 ¡ãC
5.Flame retardant:IEC 60332-3 Cat. A
6.Smoke Density:IEC 61034
7.Gases corrosivity:IEC 60754-2
8.Gases toxicity:No toxicity to IEC 60754-1
9.Electro magnetic interference resistance:YES
10.Minimum internal bending radius:6¡Ácable Diameter

FMGCG Shipbaord Communication cable with screen 150/250V

Product No. Pair No. Cross Section Outer Diameter Approx.Weight
(mm2) Min(mm) Max(mm) kg/km
FMGCG01 1 0.75 7.5 9 120
FMGCG02 10 0.75 17.5 19.5 580
FMGCG03 14 0.75 19.5 22.5 740
FMGCG04 19 0.75 22 26 930
FMGCG05 2 0.75 8.5 10 170
FMGCG06 24 0.75 25 28.5 1200
FMGCG07 4 0.75 12 13.5 290
FMGCG08 7 0.75 15 17 410
