JIS C3410 LV Collective Screen Power Cable
JIS C3410 LV Collective Screen Power Cable Application
This Cable can be applied in Marine&Offshore and various ships, ship repair and oil platforms and other offshore buildings control device and general electric lighting,machinery and equipment of factories and mines are also equally applicable.
JIS C3410 LV Collective Screen Power Cable Standards
JISC 3410-1999/2010
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)
JIS C3410 LV Collective Screen Power Cable Model
[FA-] SPYCS, SPYCBS, DPYCS, TPYCS, FPYCS
[FA-] SPYCYS, SPYCBYS, DPYCYS, TPYCYS, FPYCYS
0.6/1kV SPYCBS, FA- SPYCBS
0.6/1kV SPYCBYS, FA- SPYCBYS
0.6/1kV DPYS, TPYS, FA-DPYS, FA-TPYS
0.6/1kV DPYCS, TPYCS, FA-DPYCS, FA-TPYCS
0.6/1kV DPYCYS, TPYCYS, FA-DPYCYS, FA-TPYCYS

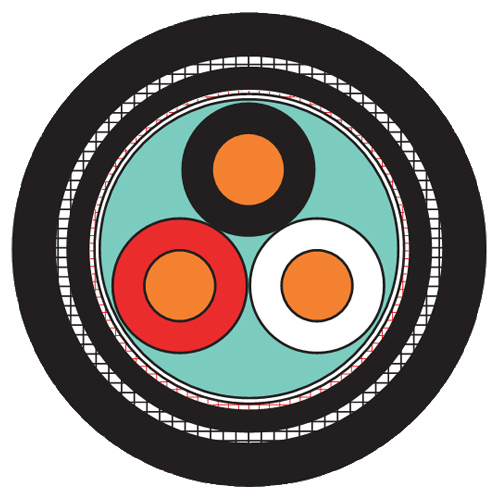

JIS C3410 LV Collective Screen Power Cable Structure
Conductor | S(D,T) | Tinned annealed stranded copper, class 2 according to IEC 60228 |
Conductor screen | Semi-conducting compound | |
Insulation | P | 85ˇăC EPR as per IEC 60092-351 |
Cabling |
Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used |
|
Overall shield | S | Tinned copper wire braid |
Bedding | Y | PVC as per JIS C 3401 |
Armor |
C (CB) |
Galvanized steel wire braid(-C TYPE) or copper alloy wire braid(-CB TYPE) |
Sheath | Y | PVC as per JIS C 3401 |
Core identification |
1C Black 2C Black, White 3C Black, White, Red |
|
Outer sheath color | Black |
