FA-TPYC Shipboard Power and lighting cable 0.6/1kV
[Search Related Products]
FA-TPYC Shipboard Power and lighting cable 0.6/1kV Applications
For fixed installations on ships and offshore-units in all locations.
Flame-Retardant,Three core,EP rubber insulated,PVC sheathed,Steel wire braid Shipboard Power cable.

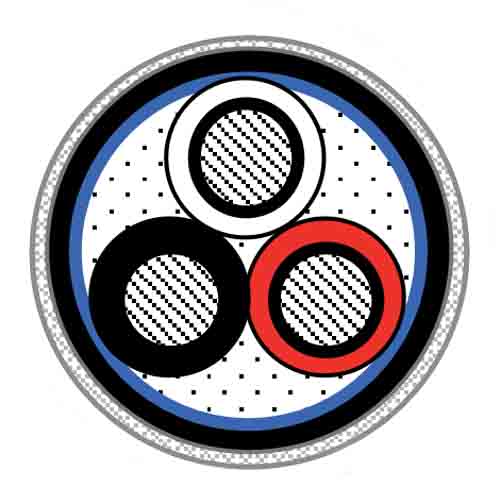

FA-TPYC Shipboard Power and lighting cable 0.6/1kV Construction:
1.Conductor:Tinned Annealed Stranded Copper,Class2 IEC60228.
2.Insulation:(EPR),Ethylene Propylene Rubber
3.Filler:Non-Hygroscopic Material
4.Sheath:(PVC),Polyvinyl Chloride
5.Armor:Galvanized Steel Wire Braid
Conductor | S(D,T) | Tinned annealed stranded copper, class 2 according to IEC 60228 |
Conductor screen | Semi-conducting compound | |
Insulation | P | 85ˇăC EPR as per IEC 60092-351 |
Cabling |
Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used |
|
Overall shield | S | Tinned copper wire braid |
Bedding | Y | PVC as per JIS C 3401 |
Armor |
C (CB) |
Galvanized steel wire braid(-C TYPE) or copper alloy wire braid(-CB TYPE) |
Core identification |
1C Black 2C Black, White 3C Black, White, Red |
|
Outer sheath color |
Black |
FA-TPYC Shipboard Power and Lighting Cable 0.6/1KV Standard
JIS C 3410-1999
IEC 60092-350
IEC 60332-1
IEC 60332-3 Cat.AF(for FA-type)
