Fire-retardant Screened  Marine Communication Cables 250V

Fire-retardant Telecommunication Cables 250V


Application:

The cable is intended for communication, computer and information proceeding unit of shipboard and naval ship, and it is also available to metallurgical industry chemical works, power planted and mines etc.



SPECIFICATION & STANDARDS

IEC 60288 IEC60092-351 IEC60092-375 IEC60092-359

IEC60332-1 IEC60332-3Cat.A IEC 60331

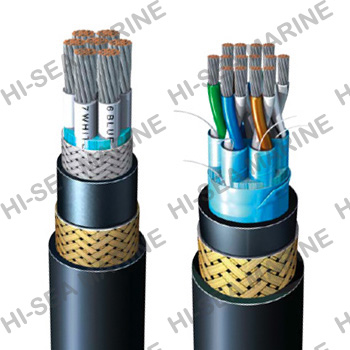

Construction:

1. Conductor: tinned copper

2. Insulation: XLPE/EPR

3. Tape

4. Individual screen: tinned copper wire braided

5. Tape

6. Inner sheath: PO (SHF1, SHF2)

7. Screen/Armored: tinned copper wire braid

8. Outer sheath: PO (SHF1, SHF2)


Flammability Features:

DA: Single cable flame retardant

SA: Bunched cable flame retardant

SC: Bunched cable flame retardant, halogen-free, low-smoke, low-toxicity.


Specifications:

Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.

Nominal Cross-section Areas: 0.75 mm2,1 mm2, 1.5mm2, 2.5mm2


Certificates:

CCS,LR,ABS,DNV,BV,GL,NK,RINA; 85℃
