Shipboard LAN Cable


Application:

The cable is suitable for high rate data transmission at a maximum 155Mhz(Cat5E) or 350Mhz(Cat6),used on ships,petrol platform and offshore buildings for data network,LAN.


Standards Applied

IEC 60332-1-2
IEC 60754-1-2
IEC 61034
IEC 61156
TIA/EIA-568-B

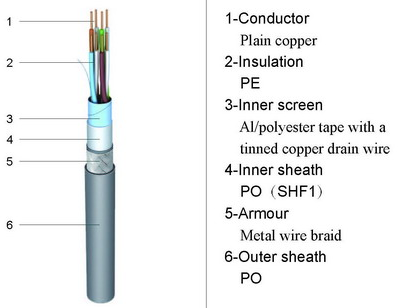

Construction:

Shipboard LAN Cable


Service Condition.

1.Rated Voltage 300V

2.Long time allowable working temperature 60¡æ


Model

Type Size Diameter Reference Weight(kg/km)
Min. Max.
Cat5E 4X2X24AWG 9.0 10.0 110
Cat6 4X2X23AWG 10.0 11.0 130

Electrical Performance:

Electrical Data Unit Cat5E Cat6
Characteristic Impedence ¦¸ 100¡À15 100¡À15
Mutual Capacitance at 1Khz nF/100m ¡Ü5.6 ¡Ü5.6
D.C resistance at 20¡æ ¦¸/100m ¡Ü9.38 ¡Ü6.658
Skew ns/100m ¡Ü538 ¡Ü536
Imblance of D.C resistance % ¡Ü3 ¡Ü3
Imblance of capacitance to earth at 1Khz pF/100m ¡Ü330 ¡Ü330
