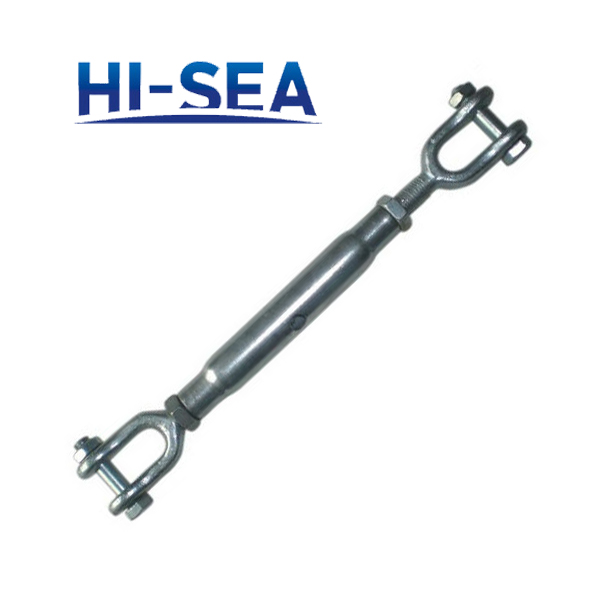

Alloy steel zinc plated DIN1478 turnbuckle
This product is made by high quality alloy steel with plalted zinc on the surface. And each turnbuckle body can be mixed and matched with jaw, eye and stub end. I believe its various category and good quality will satisfied you.Product details:
1. Item: Alloy Steel Zinc Plated DIN 1478 Turnbuckle
2. Standard: DIN 1478 type
3. Material: alloy steel
4. Type: hook&hook, eye &hook, eye&eye
5. Technology: forged
6. Surface: zinc plated, self color
7. Size: M6-M48
8. Usage: chain and wire rope accessories
9. Special specification and marks can be made according to customers requirement

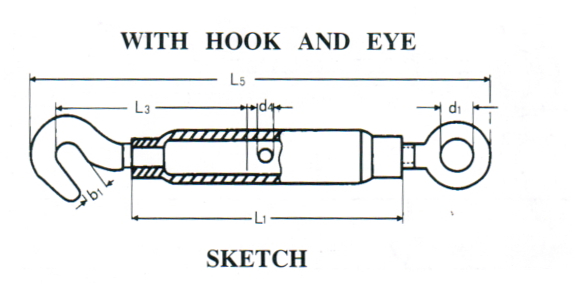

Specification:
Thread |
L1(mm) |
L3(mm) |
L5(mm) |
b1(mm) |
d1(mm) |
d4(mm) |
WT kg/100pcs |
M6 |
110 |
85 |
172 |
8.5 |
9 |
6 |
11.6 |
M8 |
110 |
85 |
182 |
11 |
10 |
8 |
19.31 |
M10 |
125 |
112 |
213 |
13.5 |
14 |
8 |
31 |
M12 |
125 |
117 |
238 |
15.5 |
16 |
10 |
42 |
M16 |
170 |
138 |
320 |
19 |
22 |
10 |
89 |
M20 |
200 |
170 |
367 |
20.5 |
24 |
12 |
158 |
M24 |
255 |
205 |
447 |
26 |
27 |
12 |
292 |
M30 |
255 |
225 |
512 |
33 |
31 |
16 |
430 |
M36 |
295 |
255 |
568 |
44 |
43 |
16 |
605 |
M42 |
330 |
340 |
683 |
48 |
49 |
20 |
1160 |
M48 |
355 |
360 |
755 |
58 |
58 |
20 |
1800 |
