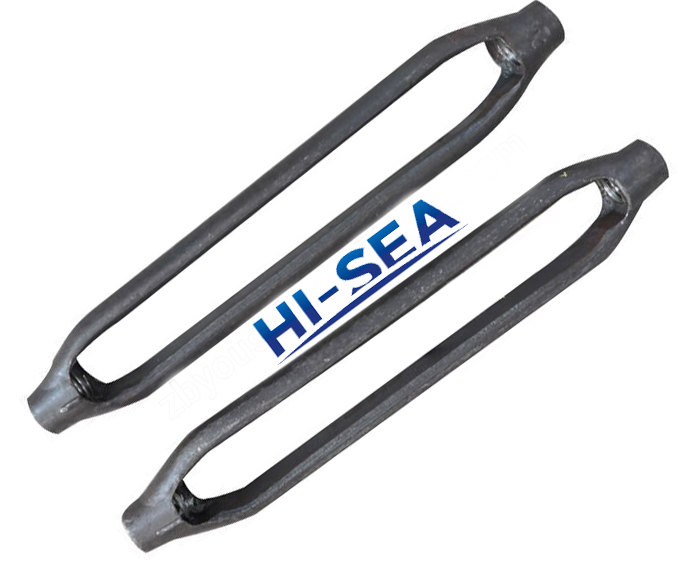

Drop forged Turnbuckle Body
Drop forged turnbuckle body can be made into a lot of types, such as US types, JIS types, commercil type and so on, according to customers requiment. And each turnbuckle body can be mixed and matched with jaw, eye and stub end.
Product details:
1. Item: drop forged turnbuckle body
2. Material: carbon steel, stainless steel, alloy
3. Technology: drop forged
4. Surface: hot dipped galv, electro galv
5. Type: US, JIS, commercial
6. Size: 1/4*4¡ª2 3/4*24
7. Usage: chain and wire rope accessories
8. Special specification and marks can be made according to customers requirement
Specification:
Thread dia & Take up |
W.L.L |
Weight |
Dimensions(in) |
||
(lbs) |
(lbs£© |
A |
B |
C |
|
1/4*4 |
500 |
0.15 |
4 |
0.5 |
0.38 |
5/16*4 1/2 |
800 |
0.19 |
4.5 |
0.56 |
0.44 |
3/8*6 |
1200 |
0.29 |
6 |
0.62 |
0.5 |
1/2*6 |
2200 |
0.6 |
6 |
0.81 |
0.62 |
1/2*9 |
2200 |
0.68 |
9 |
0.81 |
0.62 |
1/2*12 |
2200 |
1 |
12 |
0.81 |
0.62 |
5/8*6 |
3500 |
0.9 |
6 |
1 |
0.75 |
5/8*9 |
3500 |
1.18 |
9 |
1 |
0.75 |
5/8*12 |
3500 |
1043 |
12 |
1 |
0.75 |
3/4*6 |
5200 |
1.3 |
6 |
1.12 |
0.94 |
3/4*9 |
5200 |
1.75 |
9 |
1.12 |
0.94 |
3/4*12 |
5200 |
2.08 |
12 |
1.12 |
0.94 |
3/4*17 |
5200 |
2.5 |
18 |
1.12 |
0.94 |
7/8*6 |
7200 |
1.86 |
6 |
1.31 |
1.06 |
7/8*12 |
7200 |
2.7 |
12 |
1.31 |
1.06 |
7/8*18 |
7200 |
3.8 |
18 |
1.31 |
1.06 |
1*6 |
10000 |
2.48 |
6 |
1.5 |
1.25 |
1*12 |
10000 |
3.93 |
12 |
1.5 |
1.25 |
1*18 |
10000 |
5.28 |
18 |
1.5 |
1.25 |
1*24 |
10000 |
7.38 |
24 |
1.5 |
1.25 |
1 1/4*6 |
15200 |
3.9 |
6 |
1.88 |
1.5 |
1 1/4*12 |
15200 |
5.25 |
12 |
1.88 |
1.5 |
1 1/4*18 |
15200 |
7.75 |
18 |
1.88 |
1.5 |
1 1/4*24 |
15200 |
9.93 |
24 |
1.88 |
1.5 |
1 1/2*6 |
21400 |
5.8 |
6 |
2.25 |
1.75 |
1 1/2*12 |
21400 |
8.75 |
12 |
2.25 |
1.75 |
1 1/2*18 |
21400 |
11 |
18 |
2.25 |
1.75 |
1 1/2*24 |
21400 |
13.69 |
24 |
2.25 |
1.75 |
1 3/4*18 |
28000 |
16.38 |
18 |
2.62 |
2.12 |
1 3/4*24 |
28000 |
21.25 |
24 |
2.62 |
2.12 |
2*6 |
37000 |
12.5 |
6 |
3 |
2.38 |
2*24 |
37000 |
27.6 |
24 |
3 |
2.38 |
2 1/2*6 |
60000 |
27 |
6 |
3.88 |
3.12 |
2 1/2*24 |
60000 |
54 |
24 |
3.88 |
3.12 |
2 3/4*24 |
75000 |
54 |
24 |
3.88 |
3.12 |
Sketch of the turnbuckle body
Turnbuckle body
