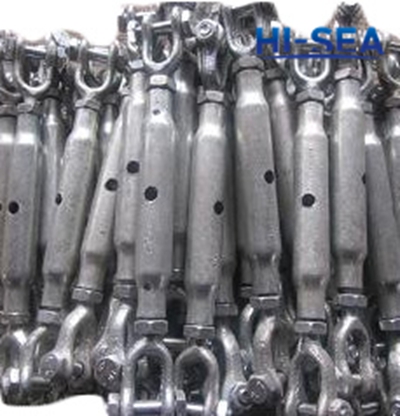

DIN1478 Turnbuckle
[Search Related Products]
DIN1478 Turnbuckle
DIN 1478 turnbuckle was produced strictly according to international standards and national standard of this technology. And the strength of the inspected sample must equal to the steel wire rope. So, the connection parts would not release or break. Besides that our turnbuckles have complete specifications, enough stock and competitive price.
Product details:
1. Item: DIN 1478 turnbuckle
2. Standard: European type
3. Material: carbon steel, stainless steel, alloy steel
4. Type: hook&hook, eye &hook, eye&eye,
5. Technology: casting
6. Surface: hot dipped galv, electro galv, zinc plated, self color
7. Size: 6mm-50mm
8. Usage: chain and wire rope accessories
9. Special specification and marks can be made according to customers requirement
Specification:
Size(mm) |
WLL(ton) |
Body length(mm) |
Weight pcs/kg |
6 |
0.2 |
110 |
0.2 |
8 |
0.4 |
110 |
0.4 |
10 |
0.6 |
125 |
0.6 |
12 |
0.9 |
125 |
0.9 |
16 |
1.3 |
170 |
1.3 |
20 |
1.7 |
200 |
1.7 |
22 |
3.2 |
220 |
3.2 |
24 |
3.9 |
255 |
3.9 |
30 |
6.2 |
255 |
6.2 |
33 |
7.3 |
295 |
7.3 |
36 |
8.5 |
295 |
8.5 |
39 |
10 |
330 |
10 |
42 |
12 |
330 |
12 |
48 |
20 |
355 |
20 |
50 |
21.5 |
355 |
21.5 |
DIN1478 turnbuckle-B
