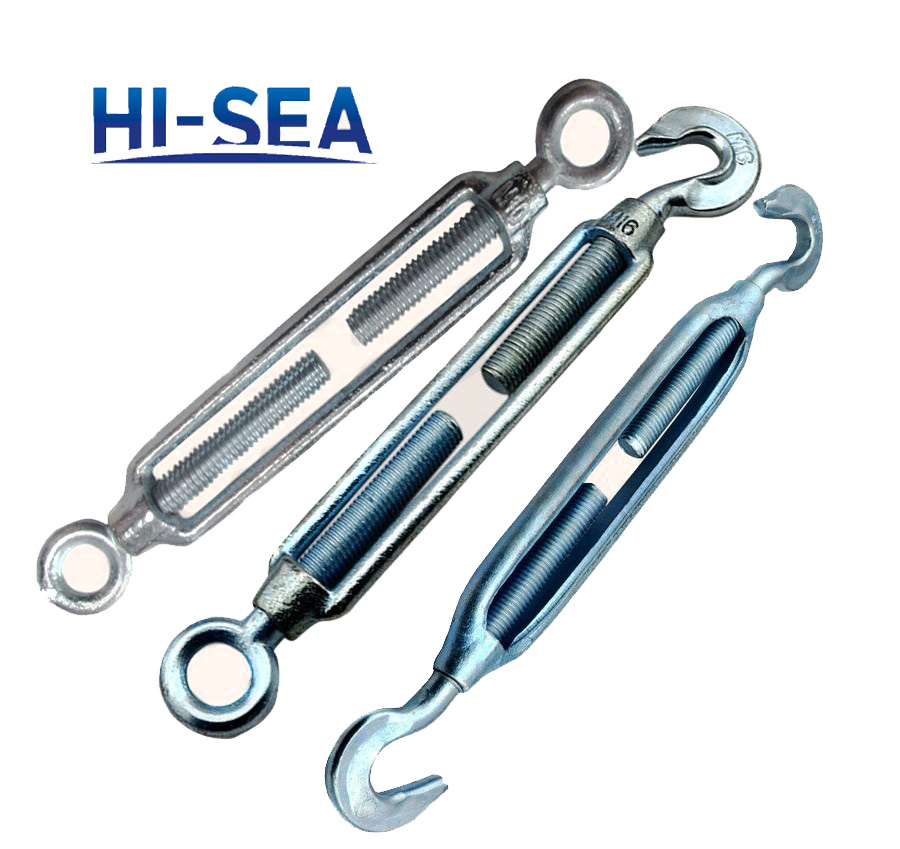

Malleable Iron Turnbuckle
Our products are made by good quality raw material and advanced international production process. The quality of them are inspected professionally by skillful workers. So, they can be widely used in electric power, metallurgy, petroleum, machinery, railway, chemical industry, ports, mining, oil & gas, fishing, offshore, construction and other industries.
Product detail:
1. Item: malleable iron turnbuckle
2. Standard: commercial type
3. Material: malleable steel
4. Type: hook&hook, hook&eye, eye&eye, jaw&jaw
5. Surface: galvanized, self-color
6. Usage: chain and wire rope accessory
7. Size: custom design
8. Special specification and marks can be made according to customers requirement
Specification:
SWL(KG) | A | B | V | D | E | L | Weithg(KG) |
100 | 6x100mm | 145 | 215 | 12 | 10 | 100 | 0.16 |
200 | 8x125mm | 185 | 280 | 14 | 12 | 125 | 0.24 |
300 | 10x150mm | 210 | 325 | 16 | 14 | 150 | 0.39 |
500 | 12x200mm | 275 | 430 | 19 | 18 | 200 | 0.64 |
1000 | 16x250mm | 345 | 540 | 23 | 24 | 250 | 1.44 |
1500 | 20x300mm | 435 | 670 | 28 | 26 | 300 | 2.45 |
2200 | 22x320mm | 480 | 740 | 34 | 32 | 325 | 3.6 |
3000 | 24x350mm | 555 | 830 | 36 | 36 | 350 | 5 |

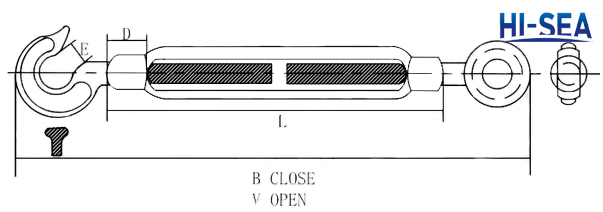

Sketch of the malleable iron turnbuckle
