Rigging Fastener Turnbuckle with Stub End

Rigging Fastener Turnbuckle with Stub End

Rigging fastener turnbuckle with stub end can be made into a lot of types, such as US types, JIS types, commercil type and so on, according to customers requiment. Because of the characteristics of it, it can be widely used in large construction site, large factory, shipping and bridge constraction.

Product details:

1. Item: Rigging fastener turnbuckle with stub end

2. Standard: US type, commercial type, JIS type

3. Material: carbon steel, stainless steel, alloy steel

4. Type: stub end

5. Technology: drop forged

6. Surface: hot dipped galv, electro galv

7. Size: 1/4”*4”—2 3/4”*24”

8. Usage: chain and wire rope accessories

9. Special specification and marks can be made according to customers requirement

Specification:

W.L.L.	WT	Body length	Stub end length
lbs	lbs	in	in
1200	0.75	7.13	4.44
2200	1.25	7.5	4.25
3500	2.11	7.88	4.06

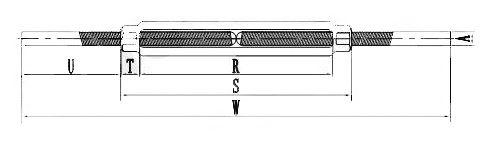

Sketch of the turnbuckle with stub end

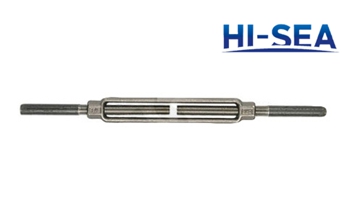

Rigging fastener turnbuckle with stub end
