DIN 1480 Forged Turnbuckles with Hook and Eye
This product is made by high quality stainless steel and carbon steel with advanced international production process. And the CO type used for the occasion that one side is often been removed while the other side is not. Besides that, Special specification and marks can be made according to customers requirement
Product details:
1. Material: Steel/Carbon Steel/Stainless Steel
2. Type: Hook and Eye
3. Usage: Industrial
4. Size: M6-M30
5. Color: Hot Dipped Galvanized
6. Application: Lifting Accessories
7. Surface: Galvanized
8. Process: Forged
9. Surface: H. D. G
10. Other: Customized
11. Packing: Carton, Bag, Pallet
12. Standard: CE, ISO9001
Specification:
SIZE(mm) |
W.L.L.(N) |
TOTAL LENGTH(mm) |
BODY LENGTH(mm) |
N.W.(kg/100pcs) |
M6 |
2250 |
180 |
110 |
7.8 |
M8 |
4100 |
195 |
110 |
14.8 |
M10 |
6500 |
230 |
125 |
29.4 |
M12 |
9300 |
250 |
125 |
36.3 |
M16 |
17700 |
320 |
170 |
56.0 |
M20 |
27000 |
400 |
200 |
156.0 |
M22 |
32000 |
428 |
220 |
230.0 |
M24 |
39200 |
490 |
255 |
325.0 |
M30 |
62500 |
530 |
255 |
415.0 |

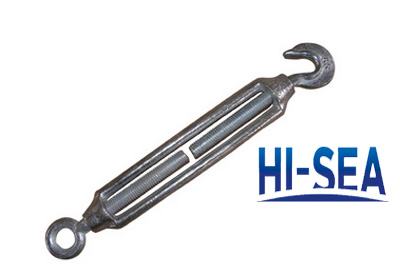

Carbon Steel Turnbuckle with Hook and Eye
