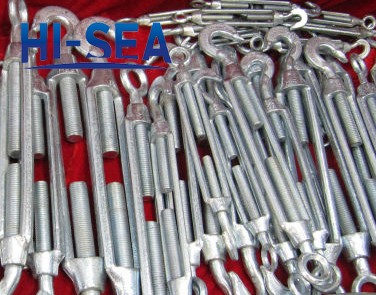

Turnbuckles DIN1480
[Search Related Products]Turnbuckles DIN1480:
DIN1480 turnbuckles are made by high quality carbon steel with advanced international production process. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products. Because of the characteristics of it, it can be widely used in large construction site, large factory, shipping, bridge constraction and so on. And special specification and marks can be made according to customers requirement.
Product details:
1. Model NO.:DIN 1480
2. Material: Mild steel. Carbon steel. Malleable. Alloy steel. Stainless steel etc.
3. Type:Hook & Hook,Hook and Eye,Eye and Eye,etc
4. Usage:Marine Industry
5. Installation:External
6. Condition:New
7. Surface:Electric Galvanized, self-colored, hot dip galvanized
8. Customized: Yes
9. Size:M5-M56
10. Export Markets:Global
11. Packing:Carton with Pallet
12. Standard:ISO, CE, SGS
Specification:
Size |
W.L.L. Ton |
Body Length mm |
N.W. Kg |
M5 |
0.2 |
70 |
0.6 |
M6 |
0.22 |
110 |
0.078 |
M8 |
0.41 |
110 |
0.16 |
M10 |
0.65 |
125 |
0.29 |
M12 |
0.9 |
125 |
0.43 |
M14 |
1.1 |
140 |
0.62 |
M16 |
1.3 |
170 |
0.92 |
M18 |
1.5 |
180 |
1.25 |
M20 |
1.7 |
200 |
1.63 |
M22 |
3.2 |
220 |
2.22 |
M24 |
3.9 |
255 |
3.00 |
M27 |
4.5 |
255 |
3.35 |
M30 |
6.2 |
255 |
4.60 |
M33 |
7.3 |
295 |
6.65 |
M36 |
8.5 |
295 |
7.68 |
M39 |
10 |
330 |
10.41 |
M42 |
12 |
330 |
12.90 |
M45 |
16 |
355 |
16.00 |
M48 |
20 |
355 |
21.00 |
M52 |
23 |
355 |
23.00 |
M56 |
23 |
355 |
24.00 |
