DIN1480 Turnbuckle with Eye & Eye
DIN1480 turnbuckles are made by high quality carbon steel with advanced international production process. The type of OO model is used in the occasion that less often been removed. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products.
product details:
1. Turnbuckles Material:Carbon steel, Stainless Steel, alloy steel
2. Type: Eye and Eye
3. Surface:Zinc Plated, Galvanized
4. Model:DIN1480 Standard
5. Surface:Self colored, hot dipped galvanized, electroplating
6. Technology: Drop forged
7. Kind:with Eye and Eye
8. Size: M6-M36
9. Condition:New
10. Standard:CE, ISO, SGS,
11. Packing: Gunny bag+ iron pallet
12. Export Markets:Global
Specification:
Size | L1(mm) | L2(mm) | L3(mm) | h(mm) | ¦µ1(mm) | ¦µ2(mm) |
M5 | 70 | 58 | 35 | 5 | 15 | 8 |
M6 | 110 | 80 | 55 | 6 | 19 | 9 |
M8 | 110 | 84 | 55 | 8 | 24 | 11 |
M10 | 125 | 105 | 63 | 9 | 31 | 15 |
M12 | 125 | 115 | 68 | 11 | 35 | 17 |
M14 | 140 | 121 | 70 | 13.5 | 36 | 18 |
M16 | 170 | 150 | 85 | 14 | 48 | 22 |
M20 | 200 | 163 | 100 | 17 | 52 | 24 |
M22 | 220 | 185 | 110 | 19 | 60 | 27 |
M24 | 255 | 205 | 128 | 21 | 66 | 27 |
M27 | 255 | 216 | 128 | 22 | 71 | 34 |
M30 | 255 | 230 | 128 | 23 | 71 | 31 |
M33 | 255 | 253 | 128 | 25 | 81 | 39 |
M36 | 295 | 20 | 148 | 28 | 95 | 43 |
M42 | 330 | 300 | 170 | 32 | 113 | 48 |
Sketch of the DIN1480 turnbuckle with eye & eye

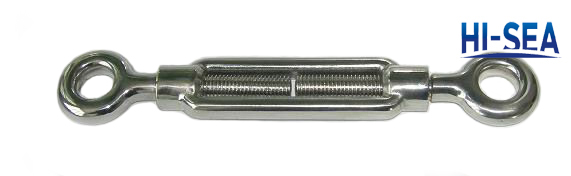

Stainless Steel DIN1480 Turnbuckle with Eye and Eye
